Description

Chain ToF is a laser ranging sensor node in the M5Stack Chain series. The device integrates a VL53L0C laser ranging module, supporting a distance measurement range of 3 ~ 200cm with an accuracy of ±3%. It is suitable for short-range non-contact distance measurement and object proximity detection applications. Chain ToF integrates an STM32G031G8U6 core MCU and adopts a UART daisy-chain communication protocol. With two HY2.0-4P expansion interfaces, it can be extended with additional Chain series devices to build richer interactive applications.

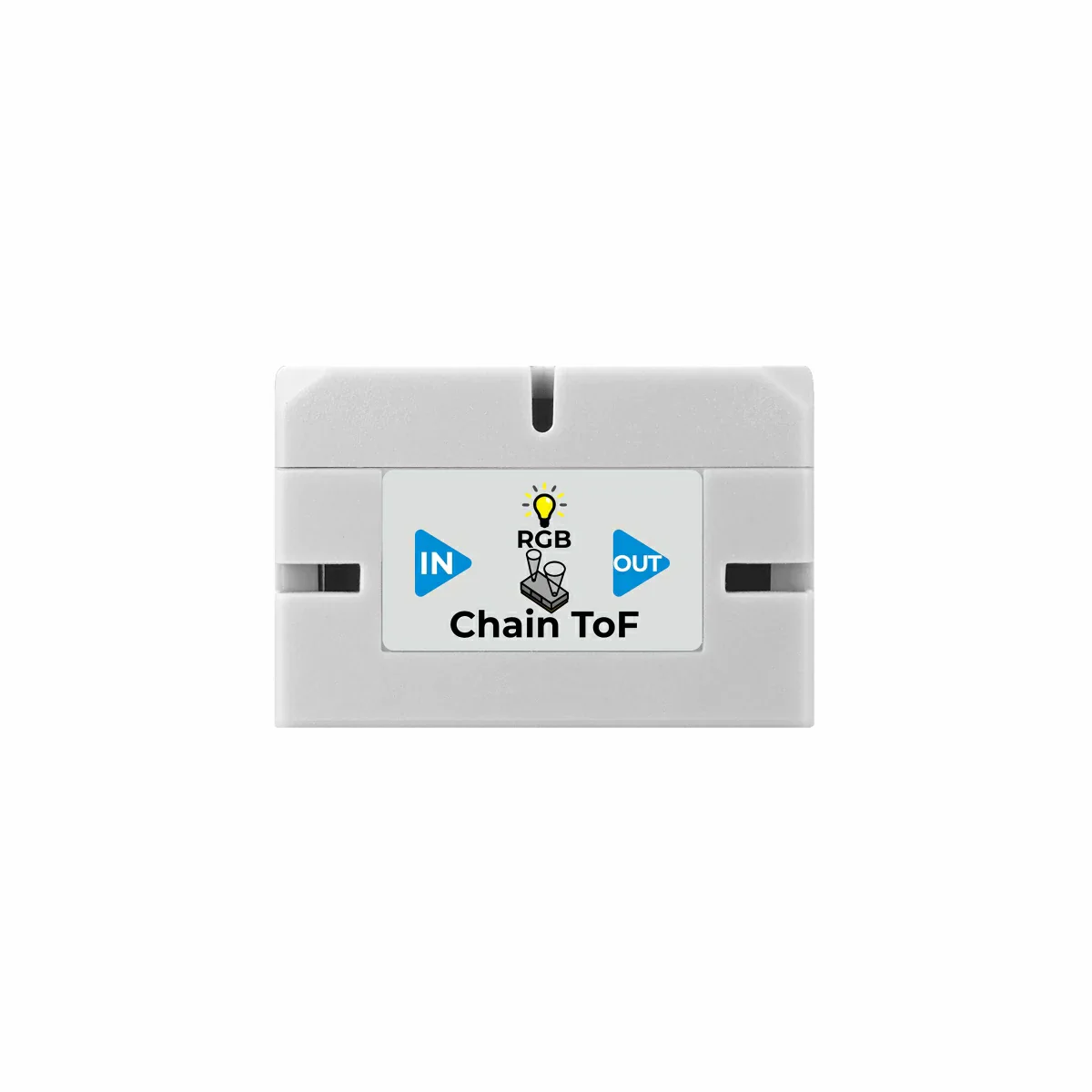

Chain ToF

Features

  • M5Stack Chain series

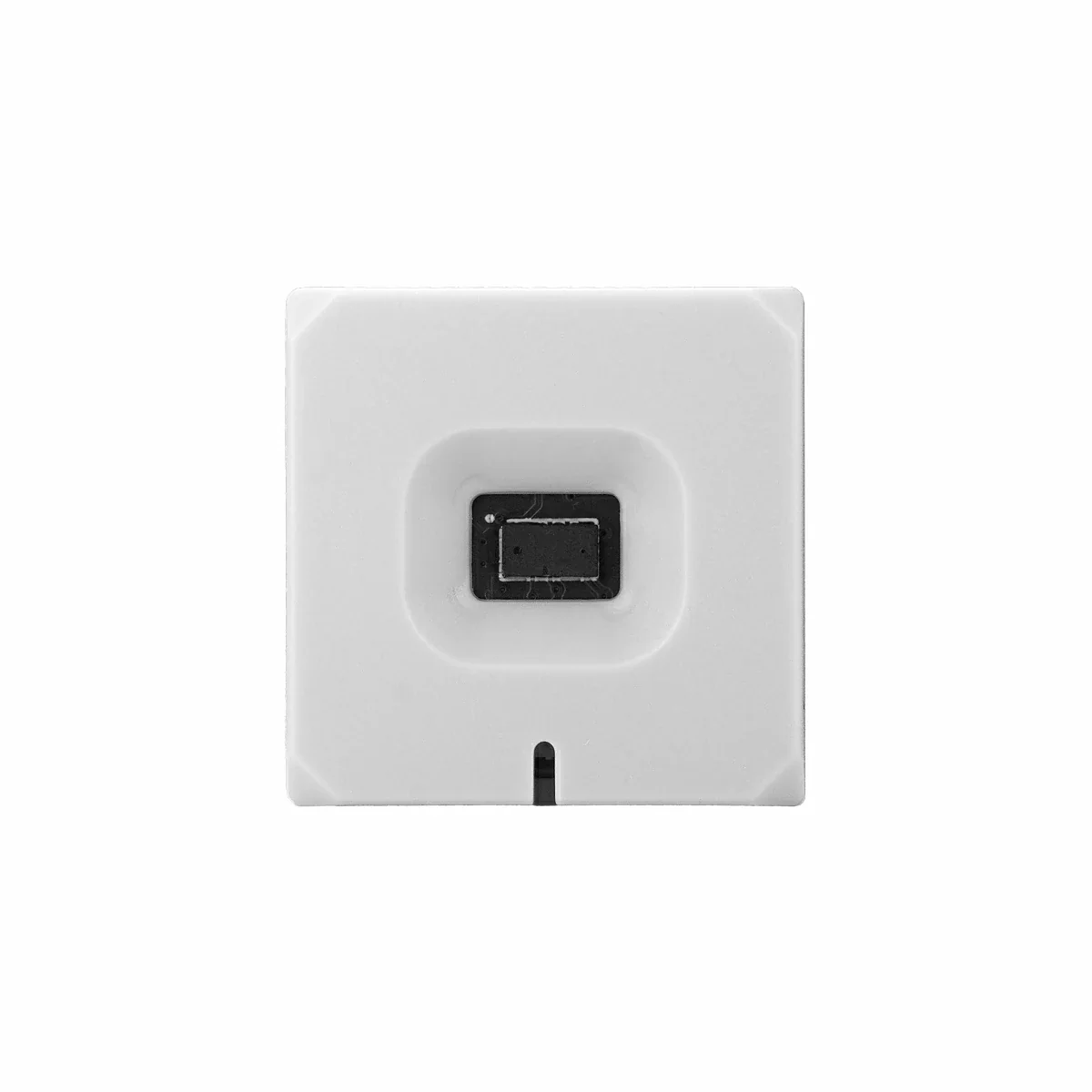

  • VL53L0C laser ranging module
  • 3 ~ 200cm measurement range
  • STM32G031G8U6 core MCU
  • UART serial daisy-chain communication protocol

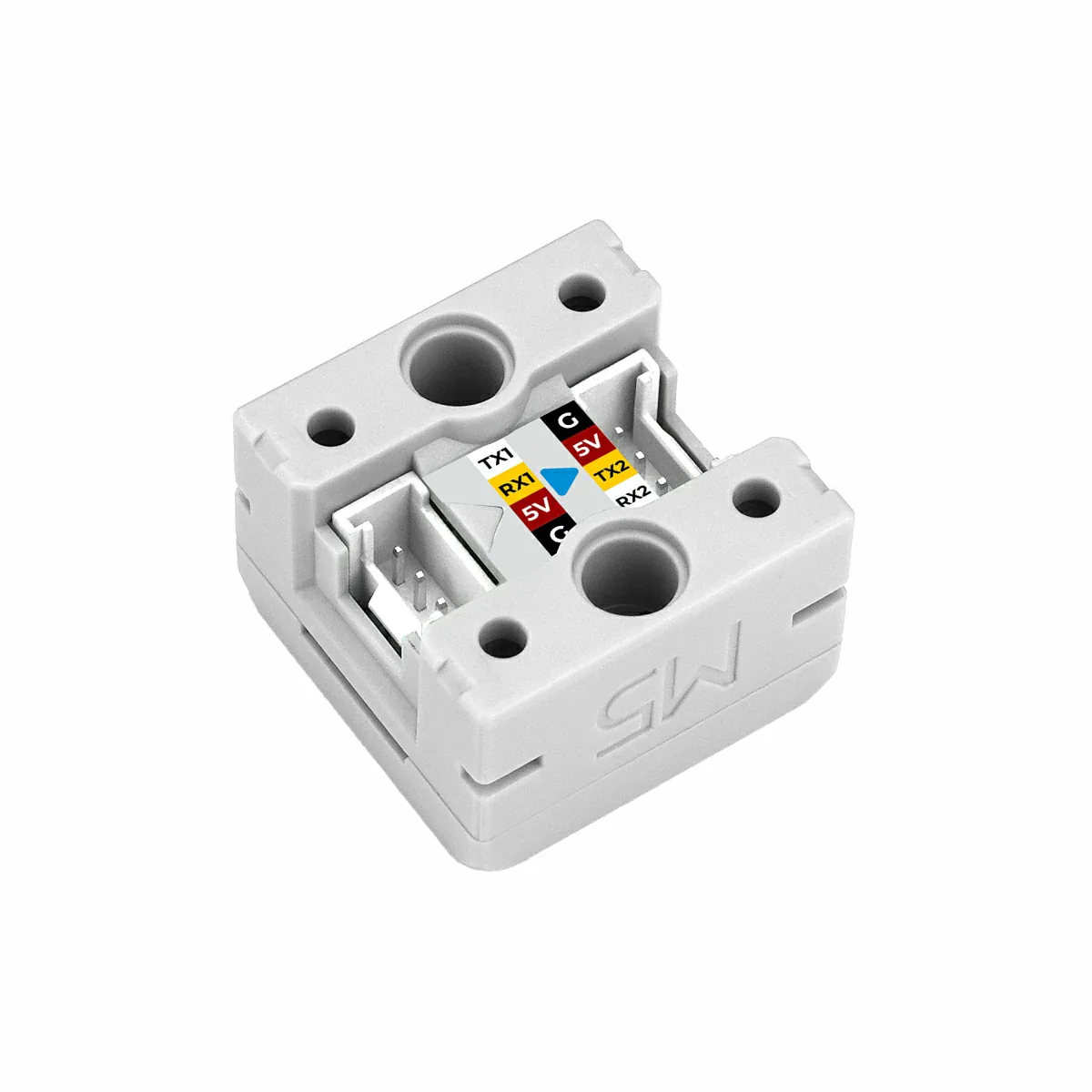

  • 2 x HY2.0-4P expansion interfaces for extending Chain series devices

Includes

  • 1 x Chain ToF
  • 1 x Chain Bridge

Applications

  • Proximity detection
  • Distance measurement

Chain ToF

Specifications

Specification Parameter
MCU STM32G031G8U6
Laser Module VL53L0C
Measurement Range 3 ~ 200cm
Measurement Accuracy ±3%
Input Power DC 5V
Communication Interface UART

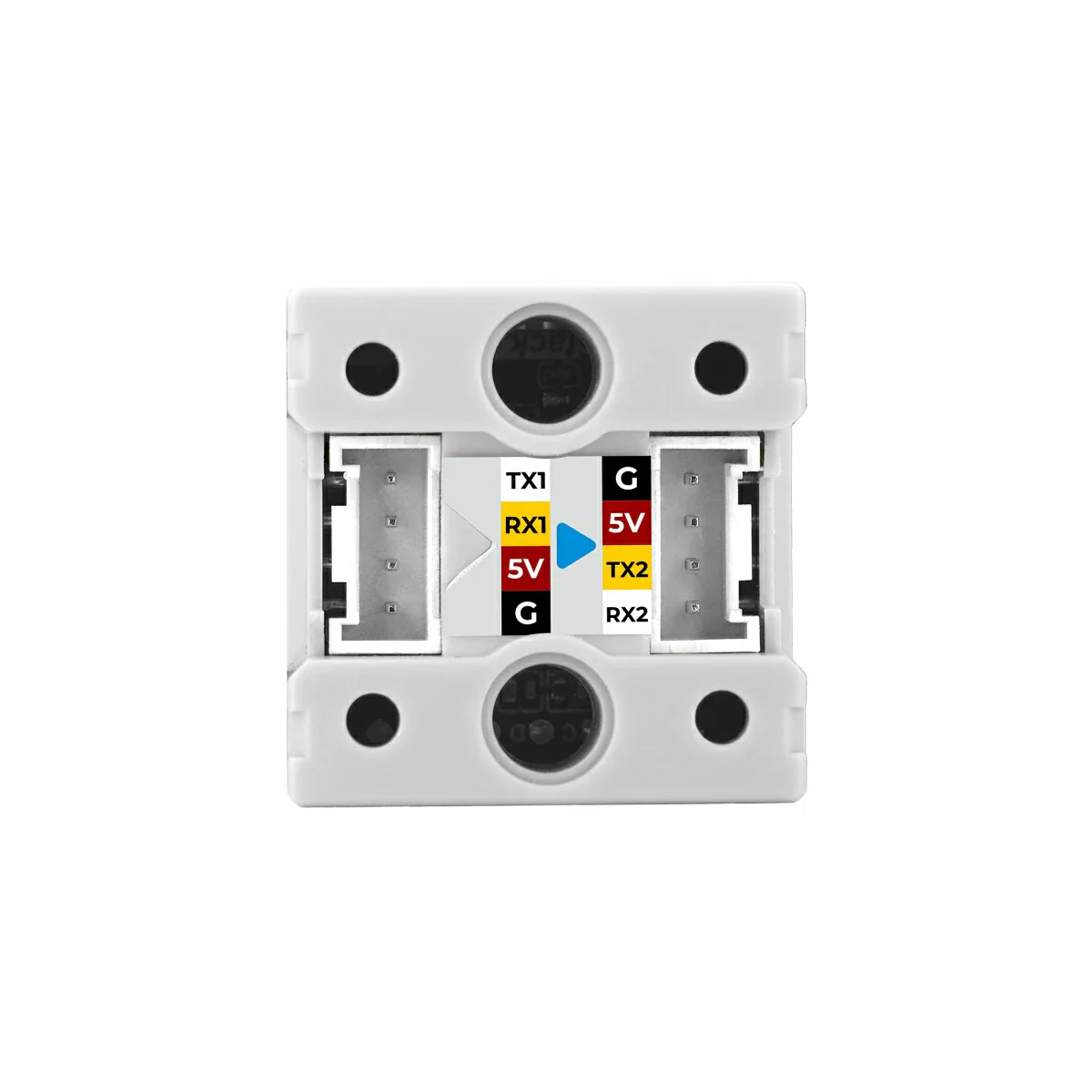

Interface Type 2 x HY2.0-4P
RGB LED 1 x WS2812C
Power Consumption Stop mode (white RGB on): DC [email protected]
Default mode single measurement: DC [email protected]
Default mode continuous measurement: DC [email protected]
Operating Temperature 0 ~ 40°C

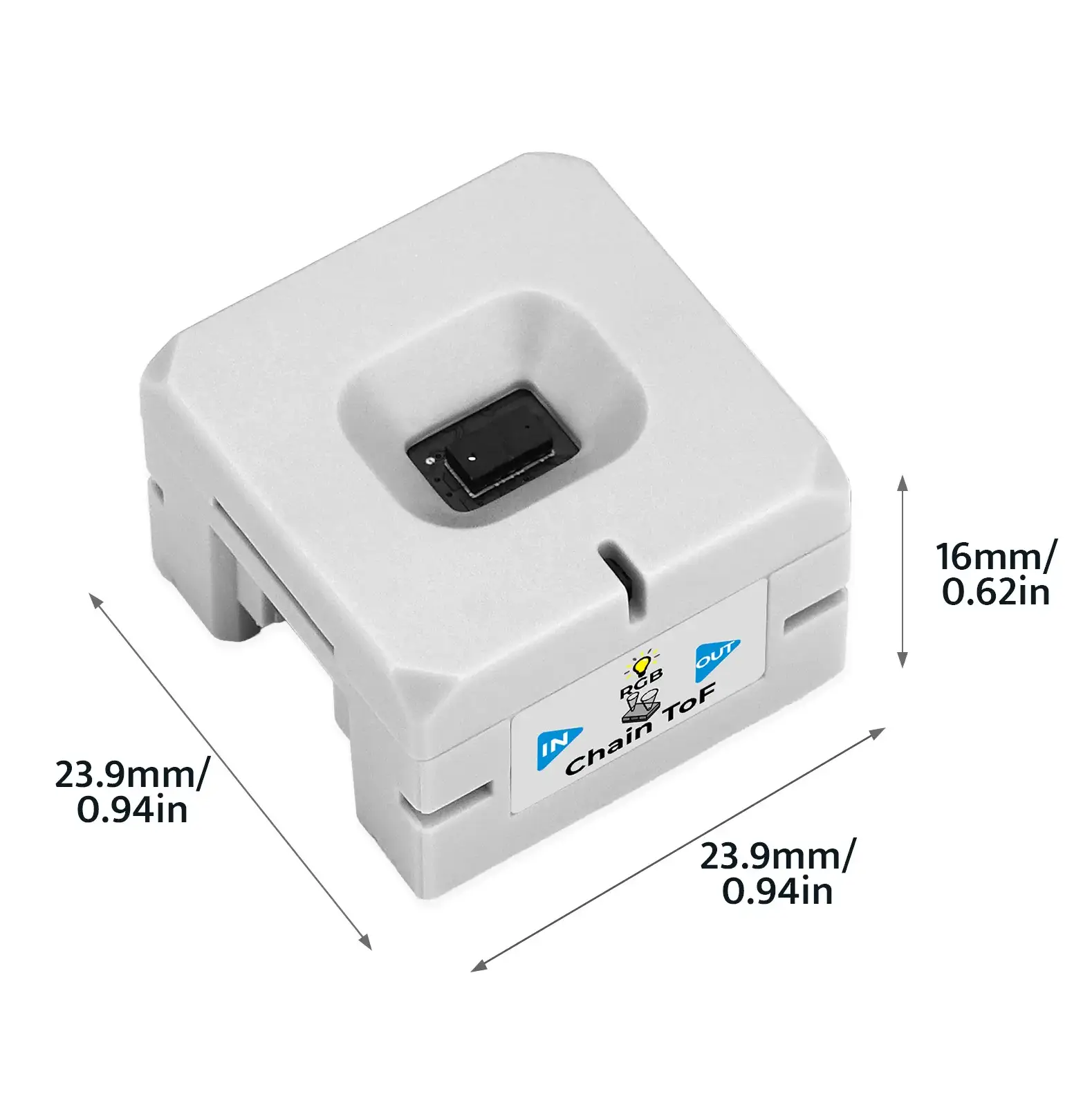

Product Size 23.9 x 23.9 x 16.0mm
Product Weight 8.8g
Package Size 138.0 x 93.0 x 14.0mm
Gross Weight 13.9g
Chain ToF

Operating Instructions

Measurement Environment Under normal conditions, the maximum test distance is 120cm. To reach 200cm, Long Range mode must be enabled and the measurement must be performed in a dark environment without infrared interference.

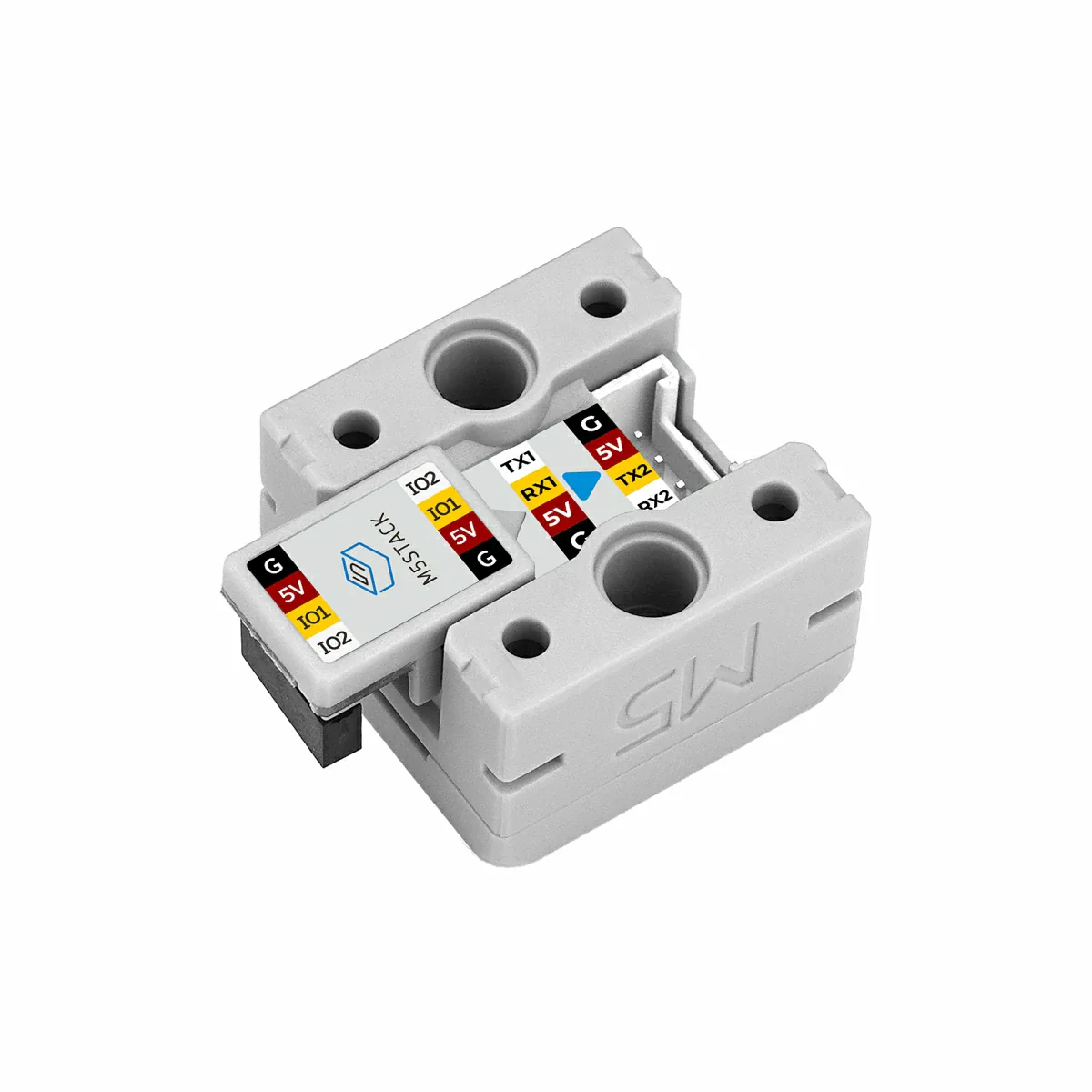

Connection Instructions Use the Chain Bridge connector to connect the main controller Chain DualKey and each Chain series input device. Pay attention to the connection direction: the triangular arrow should point from the Chain DualKey main controller outward, as shown below:

Learn and Documents

→ DOCUMENTS
