PROTO Board - DIY Pegboard for Prototyping Development
Description

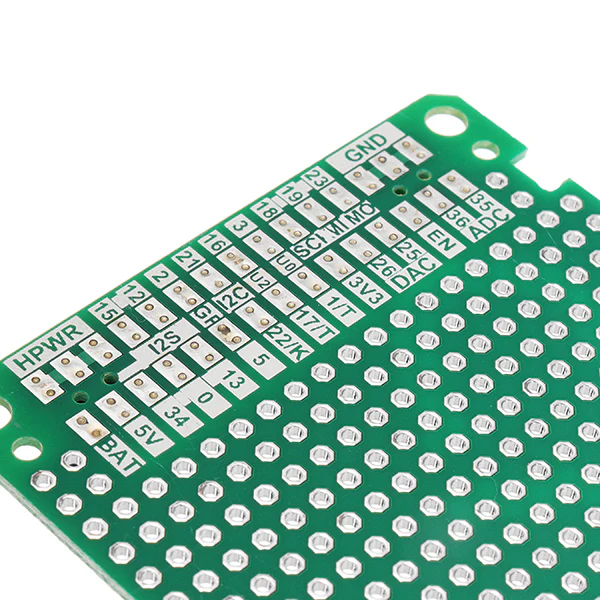

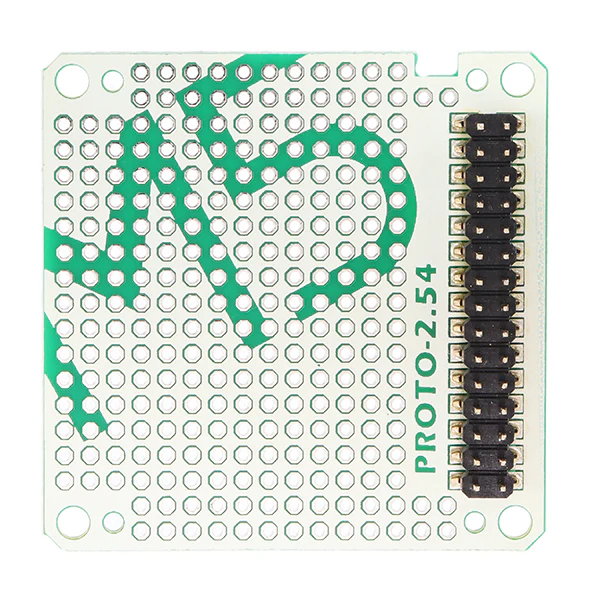

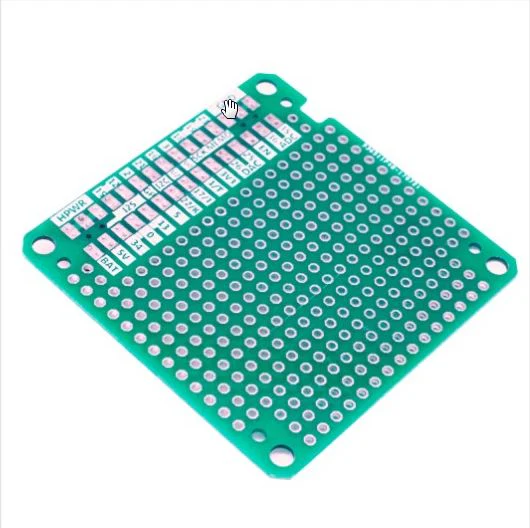

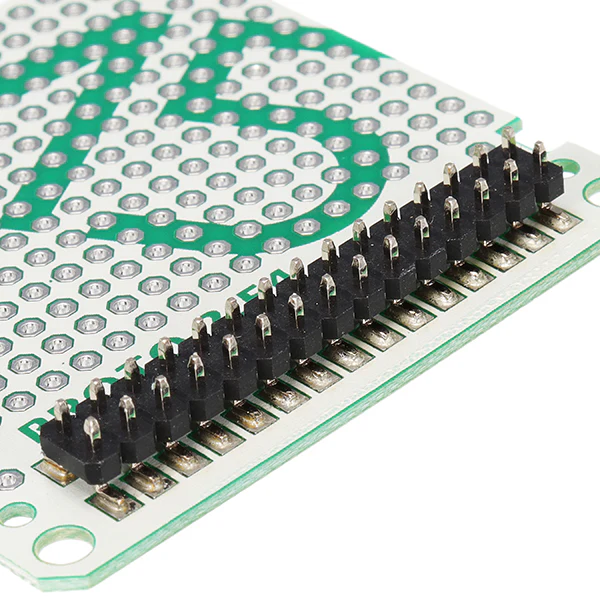

Proto Board is a universal prototype board with pre-soldered 2.54-15P straight male header pins. Users can design customized circuits on this board according to their project needs. It enables bidirectional data communication and functional control with M5 main controllers via the M-BUS interface, providing flexible support for circuit prototyping and project development.
Features
- Hole diameter: 1mm
- Hole pitch: 2.54mm
- Total holes: 260

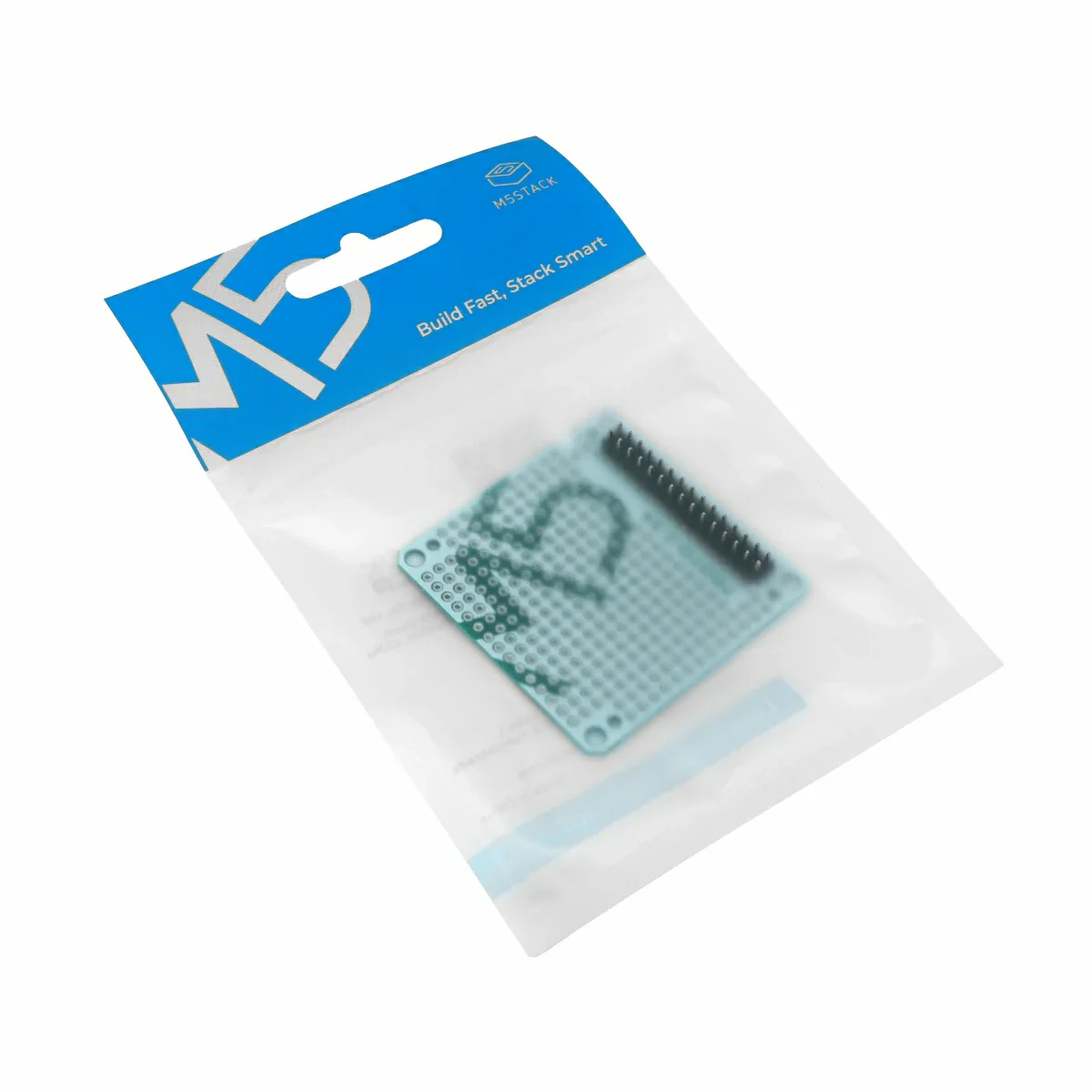

Includes
- 1 x Proto Board
Applications

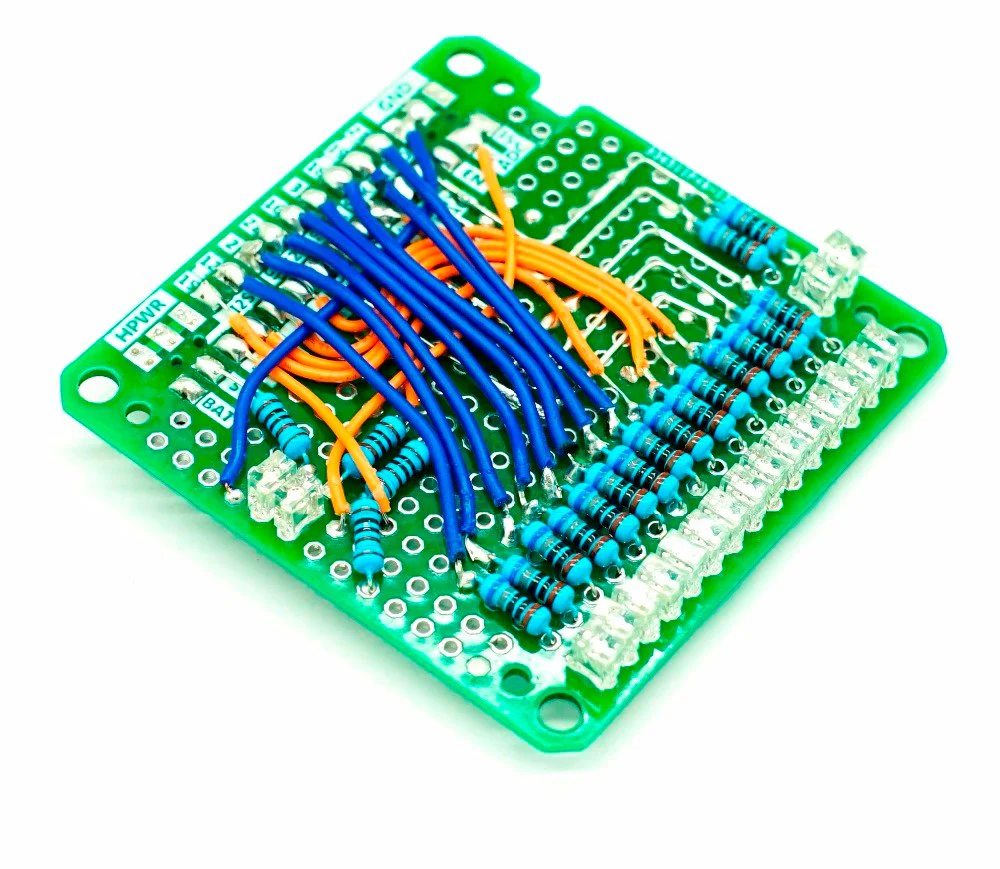

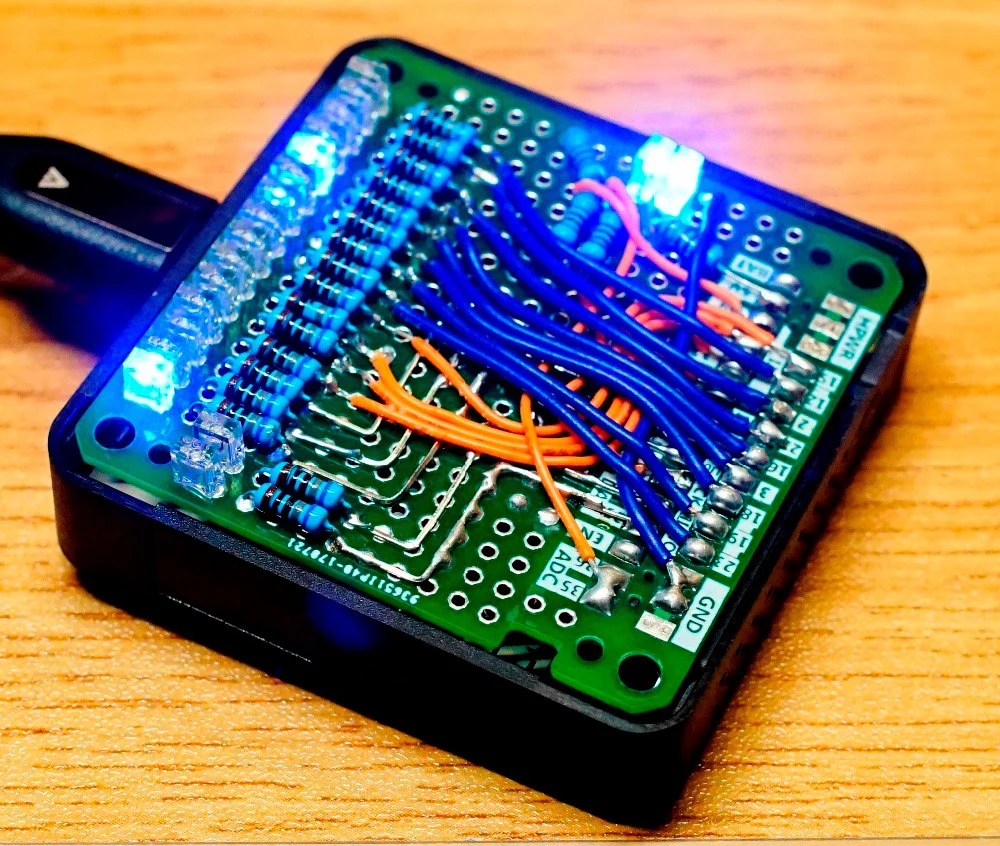

- Rapid circuit prototyping
- Education and laboratory environment
- Small-scale customized project development
Specifications
| Specification | Parameter |
|---|---|
| Product Size | 50.0 x 50.0 x 7.0mm |
| Product Weight | 5.9g |
| Package Size | 138.0 x 93.0 x 8.0mm |
| Gross Weight | 8.1g |
Learn and Documents
