M5Stamp Pico DIY Kit

Description

Stamp-Pico DIY Kit is a development kit for the Stamp-Pico minimum core board.
The kit includes a Stamp-Pico, female and male headers, a HY2.0-4P female socket, and an ESP32 Downloader. The pin order of the ESP32 Downloader is identical to the serial download pins on the Stamp-Pico, allowing direct insertion into the pad holes for firmware flashing.

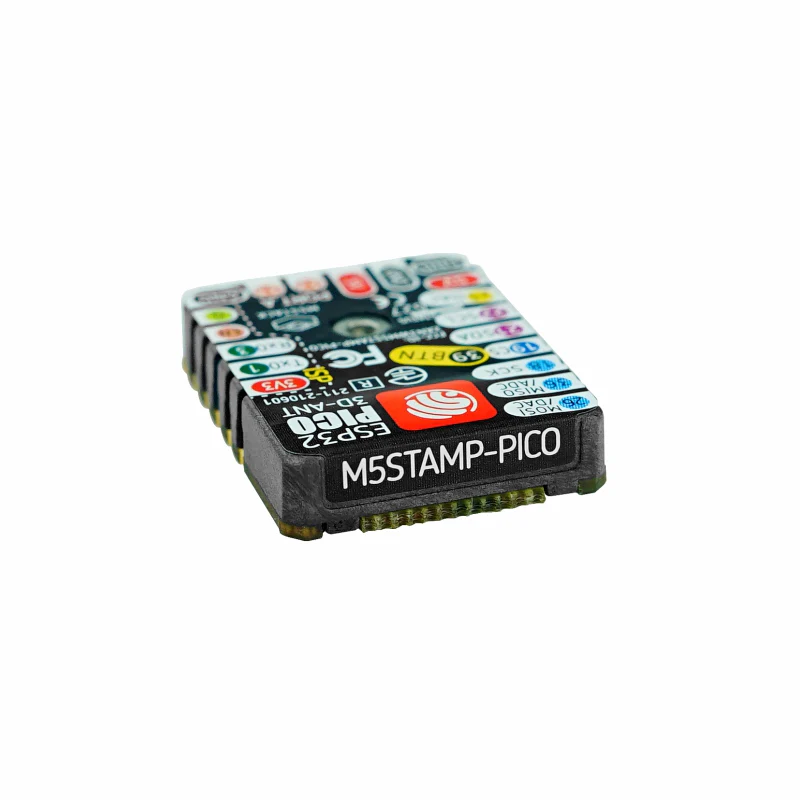

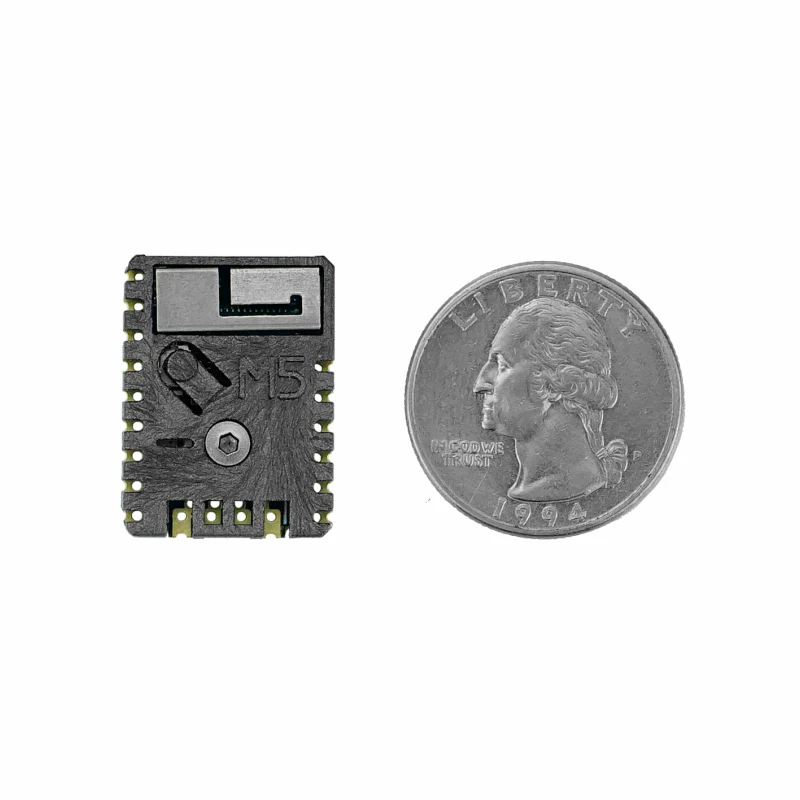

Stamp-Pico is a cost-effective Wi-Fi minimum core board powered by the ESP32 SoC with two low-power Xtensa® 32-bit LX6 microprocessors running at up to 240 MHz. Thanks to its compact size and excellent performance, Stamp-Pico can be easily embedded into your application circuit to build IoT solutions.

Features

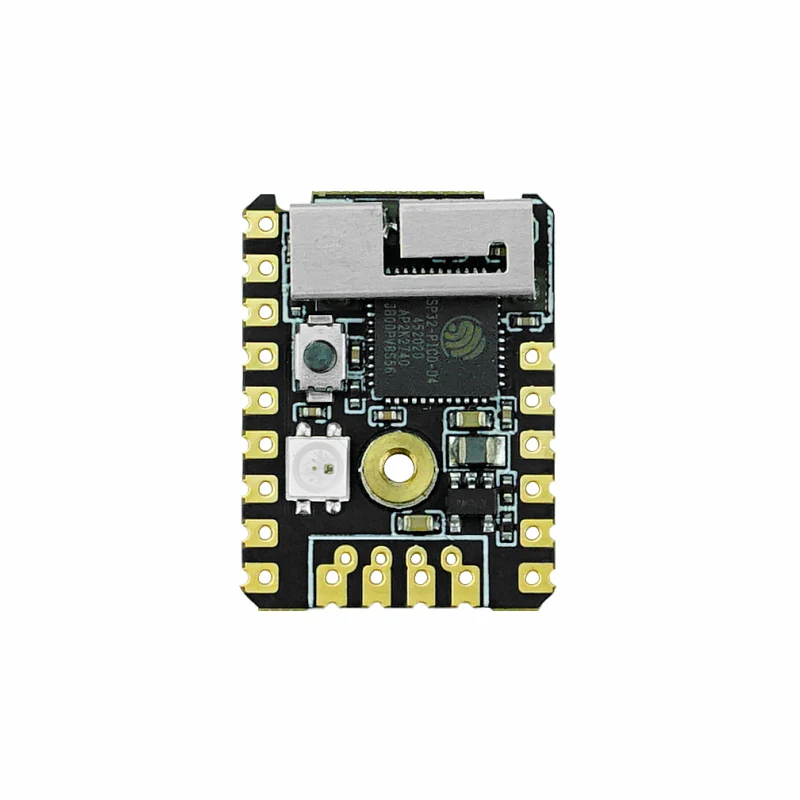

• ESP32-PICO-D4 (2.4 GHz Wi-Fi)
• Multiple I/O breakouts supporting various mounting methods (SMT, DIP, flying leads)
• Integrated programmable RGB LED and button
• ESP32 minimum system board
• High-temperature plastic armor for better protection of the 3D antenna and components

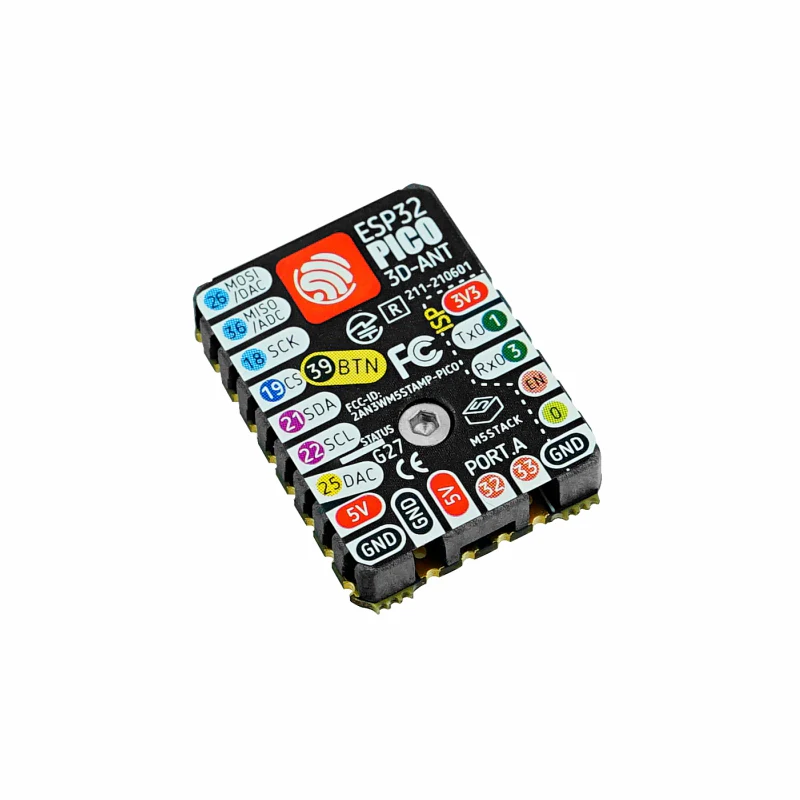

• On-board 5 V → 3.3 V DC/DC circuit, 12 × GPIO, 1 × programmable RGB LED, 1 × button
• Professionally tuned RF circuit for stable and reliable wireless communication
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 × Stamp-Pico

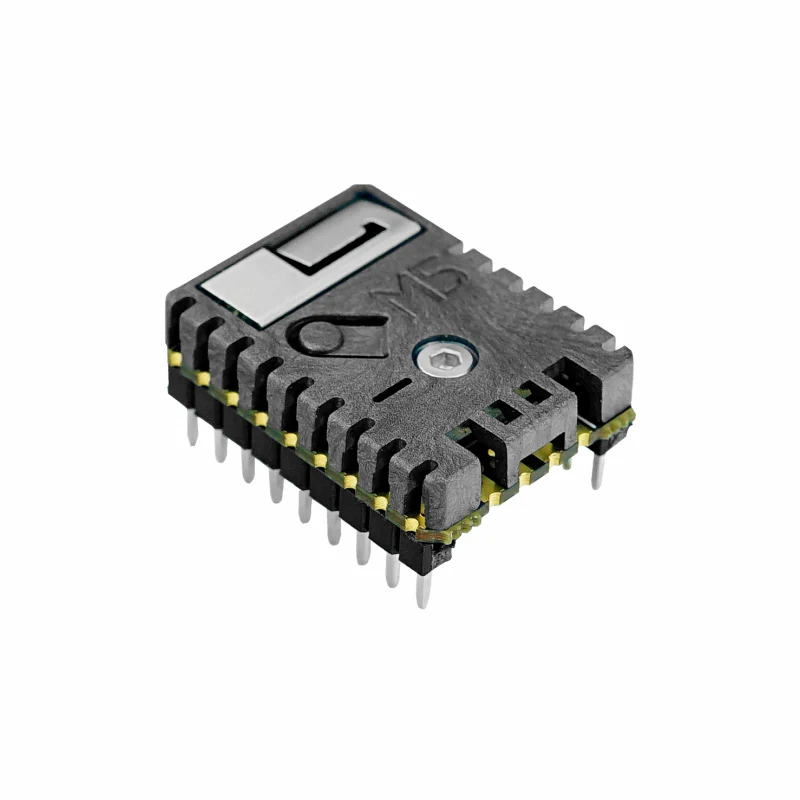

• 1 × 2.54-9P Male Header

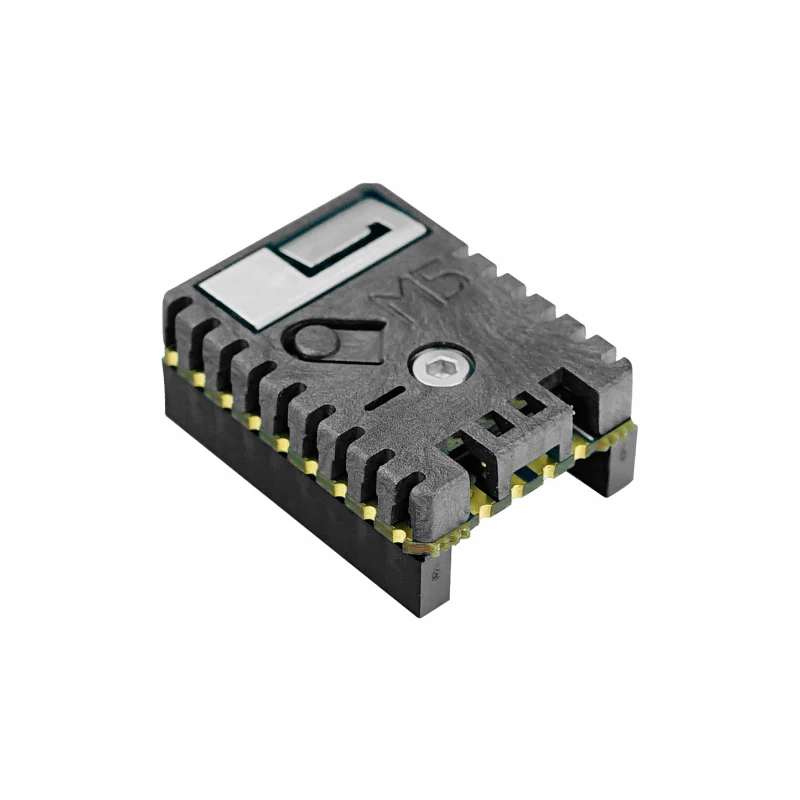

• 1 × 2.54-9P Female Header
• 1 × 2.54-6P Male Header
• 1 × 2.54-6P Female Header
• 1 × High-temperature Sticker

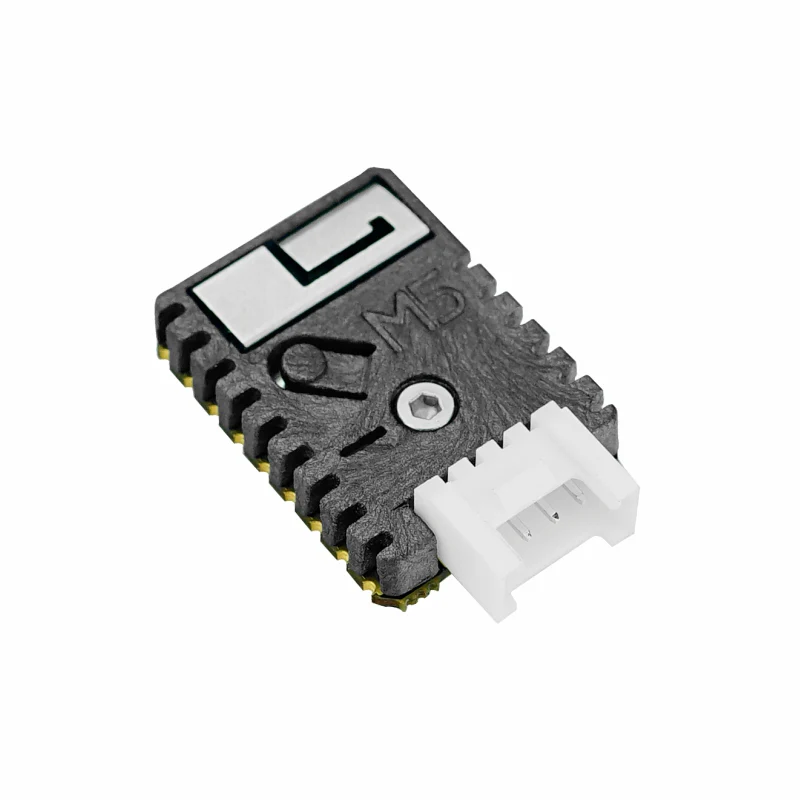

• 1 × HY2.0-4P Female Socket (90°)
• 1 × Hex Key L-Shape 1.5 mm (For M2 Screw)
• 1 × ESP32 Downloader
