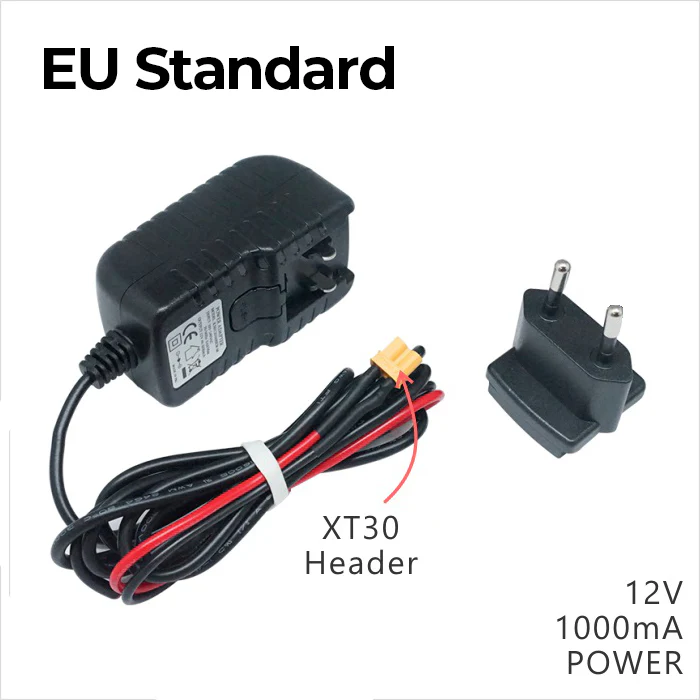

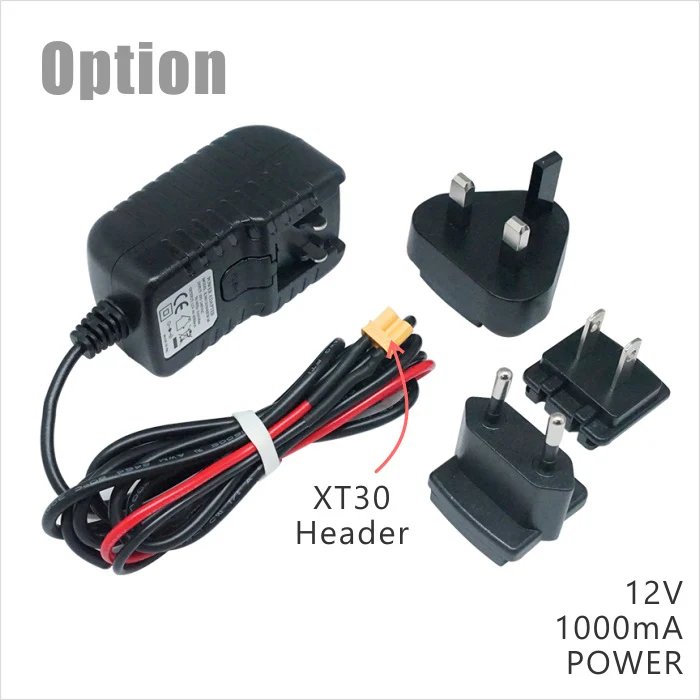

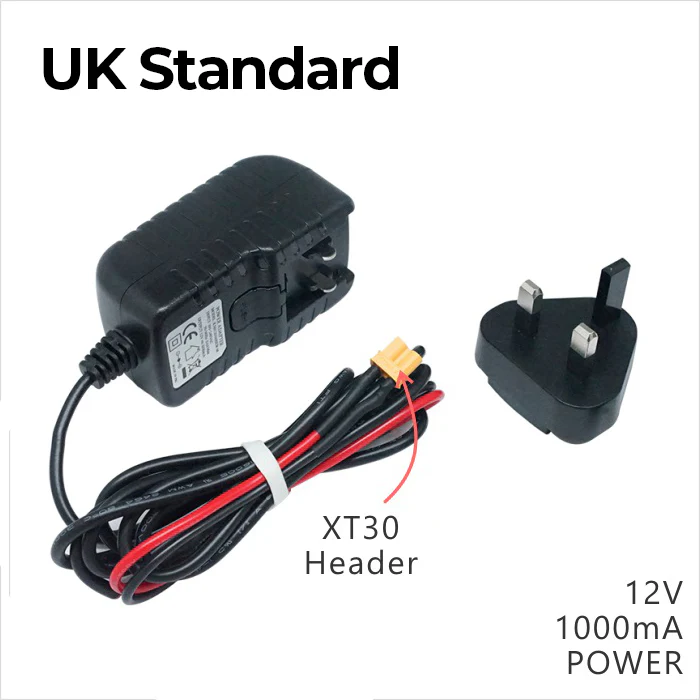

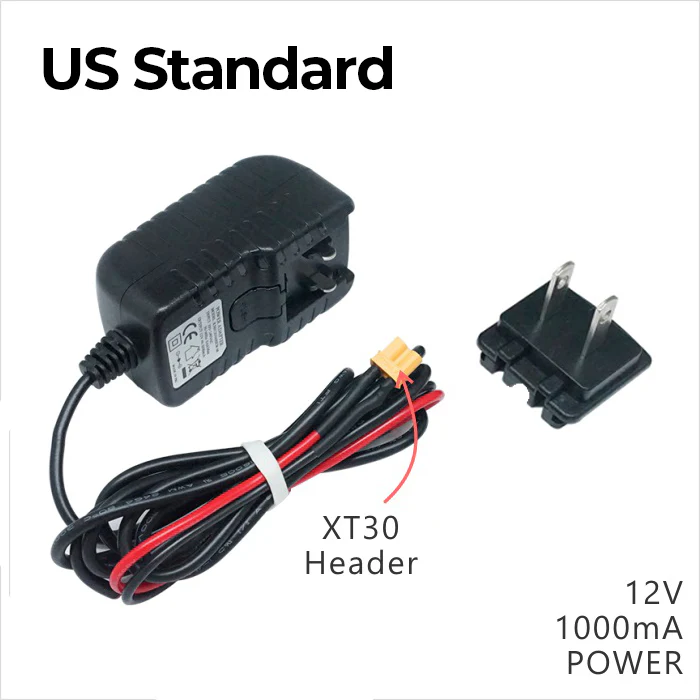

Name: Stepmotor Module with MEGA328P (DRV8825) (Optional: 12V Power Adapter)
Brand: M5Stack
SKU: stepmotor-module-with-mega328p-drv8825
Availability: InStock

Home Store

Stepmotor Module with MEGA328P (DRV8825) (Optional: 12V Power Adapter)

Product Status Notice This Stepmotor Module is EOL (End of Life), only the power adapter is available now.

Description

Module Stepmotor is a stepper motor driver module in the M5Stack stackable module series. This module can drive 3 stepper motors simultaneously using the GRBL library, making it ideal for motion control projects. The module is built with an MEGA328P and comes preloaded with GRBL firmware, communicating with the M5Core via I2C(0x70). It integrates 3 stepper motor driver boards based on the DRV8825 chip, a simple yet powerful circuit board that can control a bipolar stepper motor and allows microstepping up to 1/32 steps.

Features

Power Input: 9 ~ 24V
Controls 3 stepper motors (X, Y, Z)

Applications

DIY 3D Printer
Building Robotic Arms

Specifications

Specification	Parameter
DC Connector Type	XT30
Communication Interface	I2C Communication @0x70
Motor Connector Spec	HY2.0-4P
Net Weight	24g
Gross Weight	34g
Product Size	54.2 x 54.2 x 12.8mm
Package Size	60 x 57 x 17mm
