Thermal Camera Unit (MLX90640)
Description

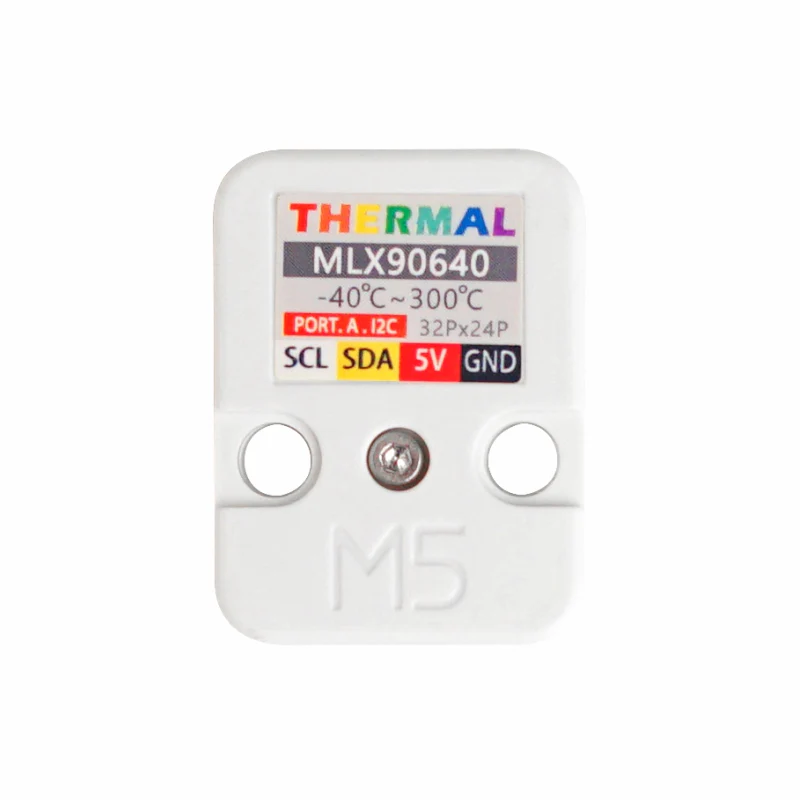

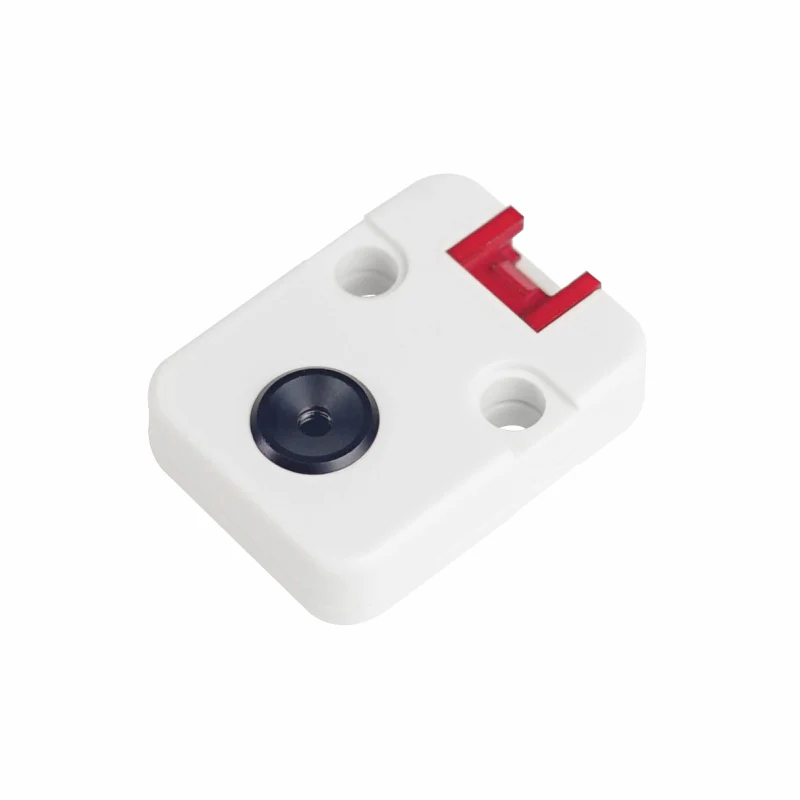

Unit Thermal is an infrared thermal imaging Unit for the human body. Built-in MLX90640 thermopile sensor, capable of measuring the surface temperature of objects and generating a thermal image (image resolution 32 x 24) based on the temperature gradient formed by the surface temperature.
The MLX90640 infrared (IR) sensor array features high resolution and reliable operation in harsh environments. Compared with expensive high-end thermal imagers, this Unit is a cost-effective alternative. Unlike ordinary microbolometers, this sensor has the advantage of not requiring frequent recalibration, thus ensuring detection continuity and reducing system maintenance costs. Field of view offers a wide-angle version (110°×75°), I2C address is 0x33.
Features
- Operating current: 23mA
- Field of view: 110°×75°
- Temperature range: -40 ~ 300°C
- Accuracy: ±1.5°C
- Refresh rate: 0.5Hz-64Hz
- Operating temperature: -40 ~ 85°C

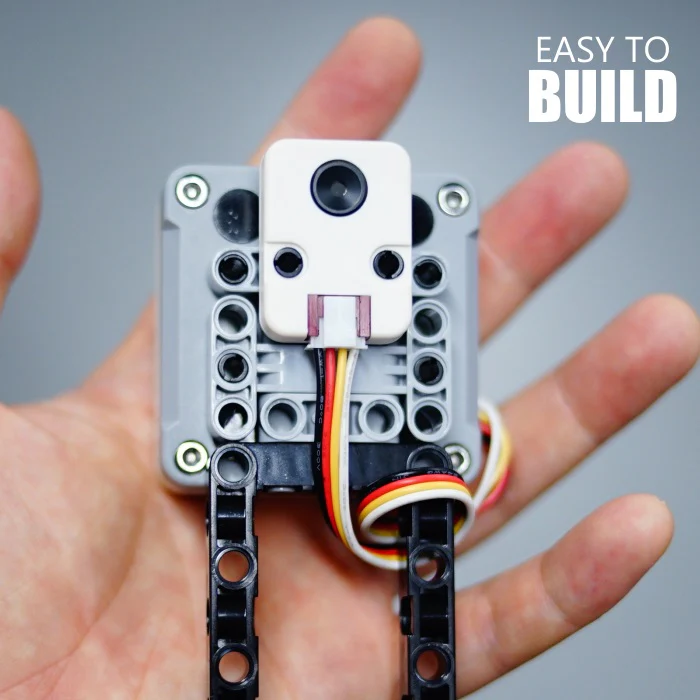

- 2 x LEGO compatible holes
Includes
- 1 x Unit Thermal
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- High-precision non-contact thermometer
- Biological motion detection

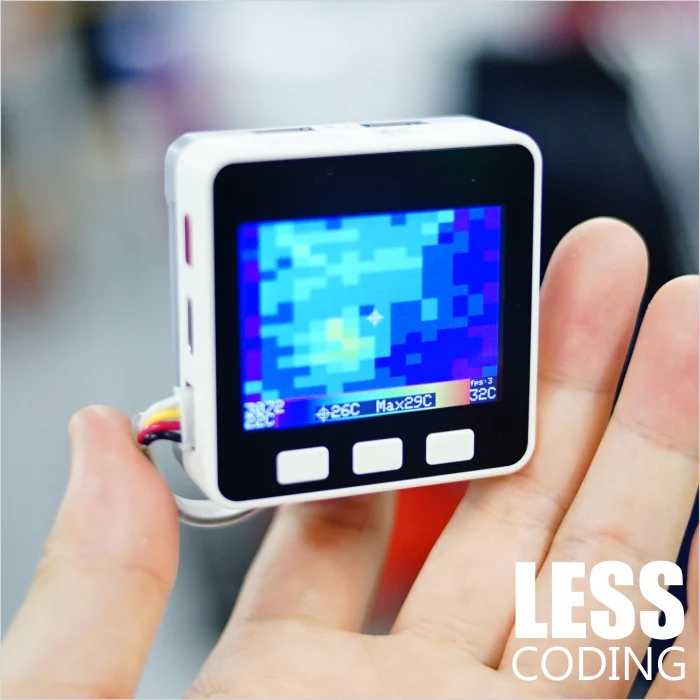

- Visualized infrared imaging
Specifications
| Specification | Parameter |
|---|---|
| Communication Interface | I2C @0x33 |

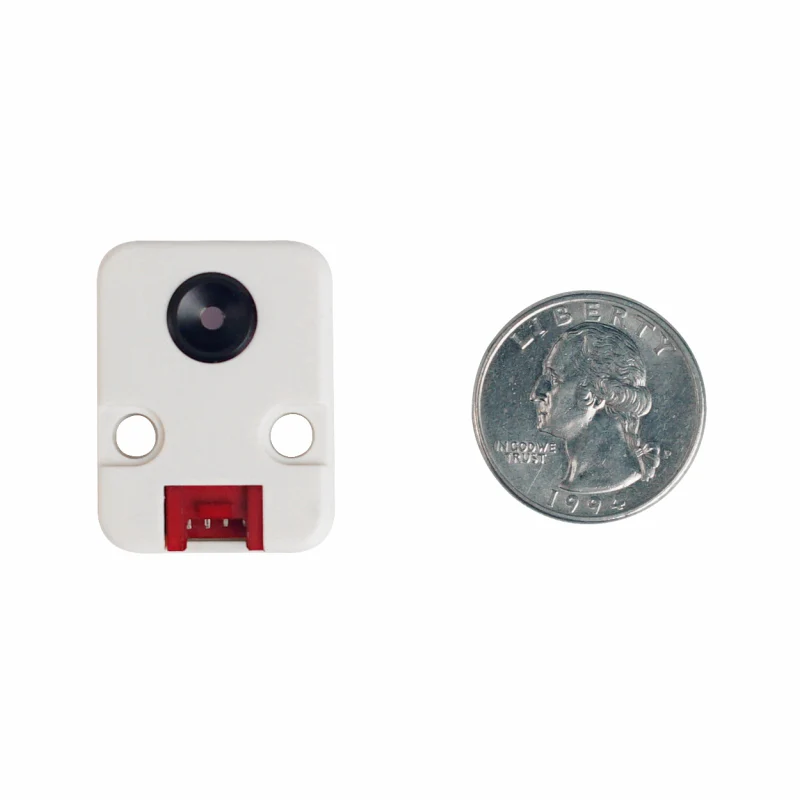

| Product Size | 32.0 x 24.0 x 8.6mm |
| Product Weight | 5.1g |
| Package Size | 138.0 x 93.0 x 9.6mm |
| Gross Weight | 10.1g |
