Time-of-Flight Distance Ranging Sensor Unit (VL53L0X)

Time-of-Flight Distance Ranging Sensor Unit (VL53L0X)

Description

Unit ToF is a laser-ranging Unit. It integrates the VL53L0X laser-ranging module, which calculates the distance between the emission point and the object detected by measuring the round-trip time of the laser signal. Unlike traditional ranging, it can provide accurate distance measurement data regardless of the reflectivity of the target. Emitting laser light with a wavelength of 940nm, it can measure an absolute distance of up to 2m in less than 30ms.

Features

  • Maximum measurement distance: 2 meters
  • Measurement accuracy: ±3%
  • Laser wavelength: 940nm
  • 2 x LEGO compatible holes
  • Development Platform
    • UiFlow1
    • UiFlow2
    • Arduino IDE

Includes

  • 1 x Unit ToF
  • 1 x HY2.0-4P Grove Cable (20cm)

Applications

  • Laser ranging
  • 3D structured light imaging (3D sensing)
  • Camera assistance (ultra-fast autofocus and depth mapping)

Specifications

Specification Parameter
Sensor VL53L0X
Protocol I2C @0x29
Measurement Range 3cm ~ 200cm
Measurement Accuracy ±3%
Product Size 32.0 x 24.0 x 8.0mm
Product Weight 4.1g
Package Size 138.0 x 93.0 x 9.0mm
Gross Weight 9.4g
Measurement Distance Under normal conditions, the maximum test distance is 120cm; to reach 200cm, you need to set Long Range mode and ensure a dark environment without infrared interference.

Product Comparison

Product Compare Unit-ToF4M  Unit-TOF
Chip VL53L1X VL53L0X
Maximum Range 4 meters 2 meters
Typical Accuracy ±1-2% ±3%
Field of View (FoV) 27° (adjustable) 25°
Adjustable Field of View YES NO

Learn and Documents

→ DOCUMENTS
$2.55

Original: $8.50

-70%
Time-of-Flight Distance Ranging Sensor Unit (VL53L0X)—

$8.50

$2.55

More Images

Time-of-Flight Distance Ranging Sensor Unit (VL53L0X) - Image 2

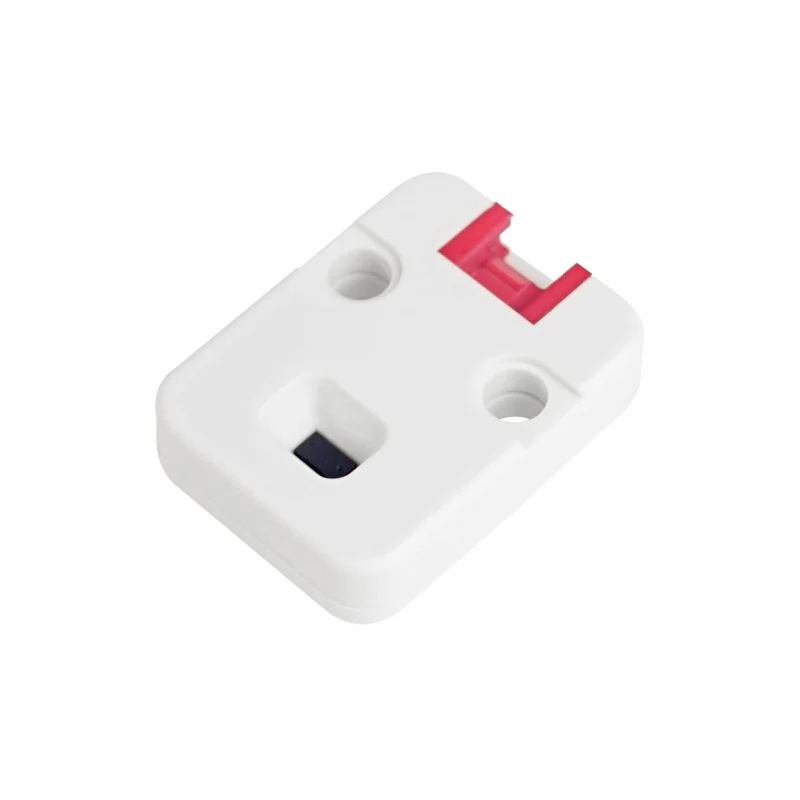

Time-of-Flight Distance Ranging Sensor Unit (VL53L0X) - Image 3
Time-of-Flight Distance Ranging Sensor Unit (VL53L0X) - Image 4

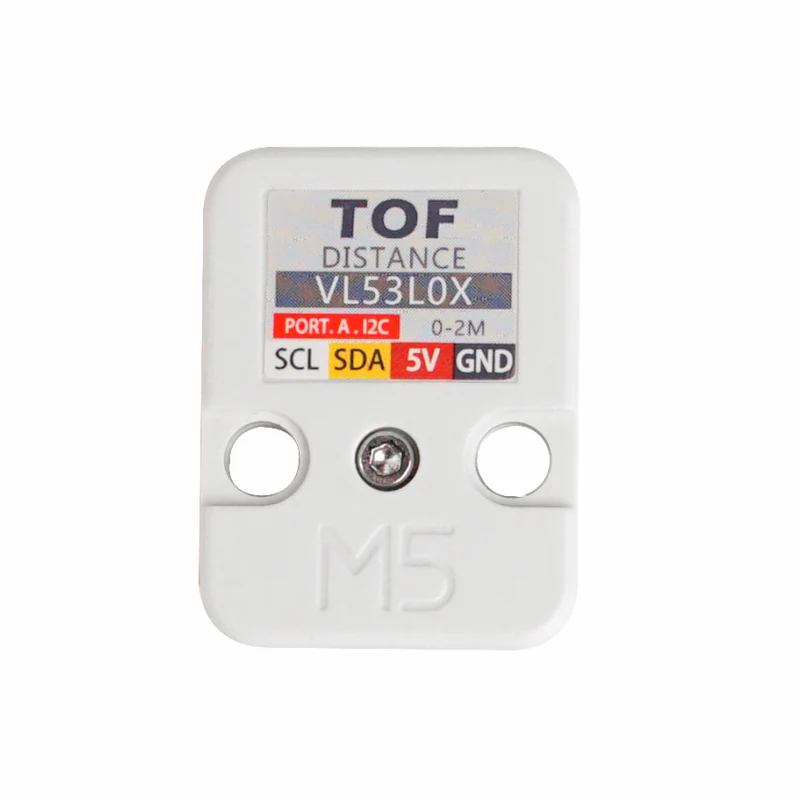

Time-of-Flight Distance Ranging Sensor Unit (VL53L0X) - Image 5

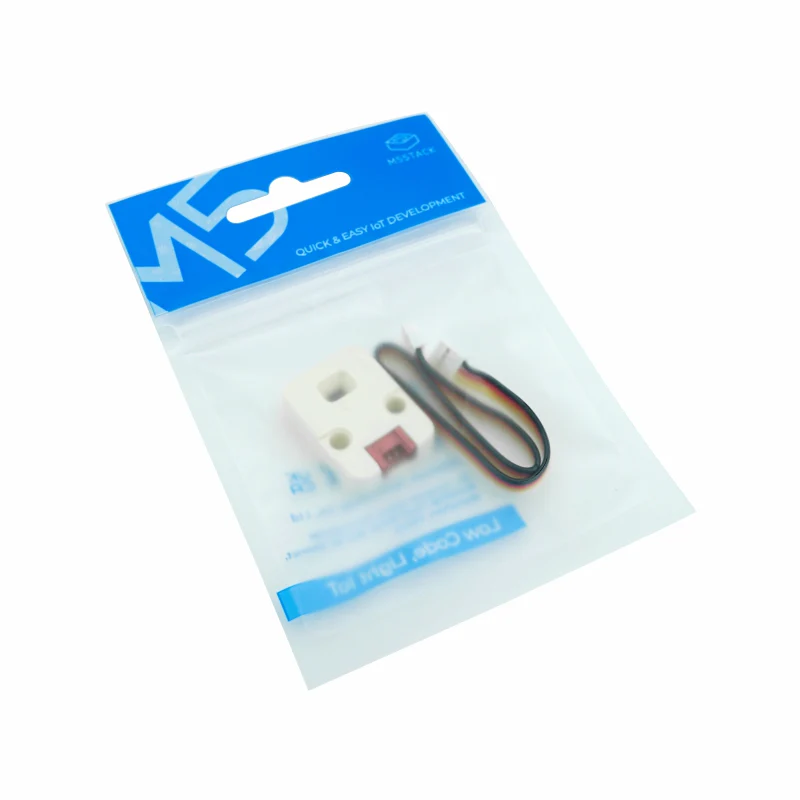

Time-of-Flight Distance Ranging Sensor Unit (VL53L0X) - Image 6
