[EOL] 4 Channels DC Encoder Motor driver module

This product is EOL.

Description

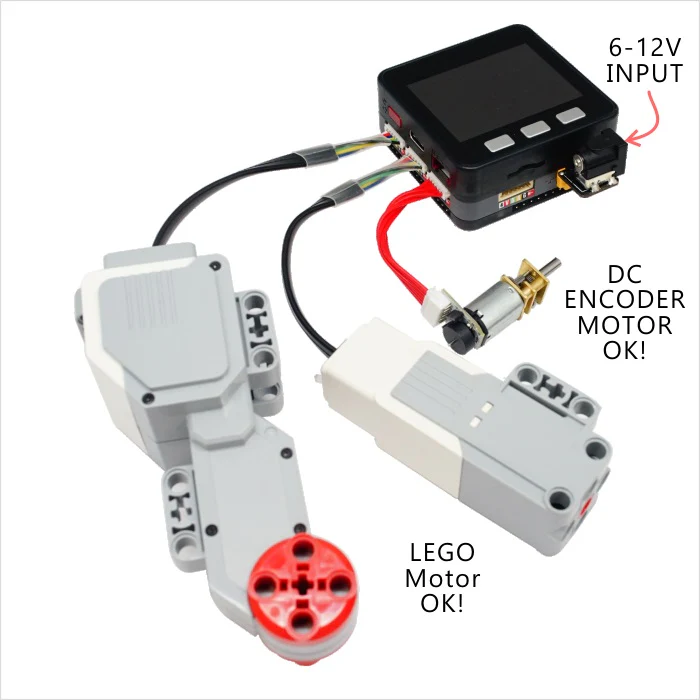

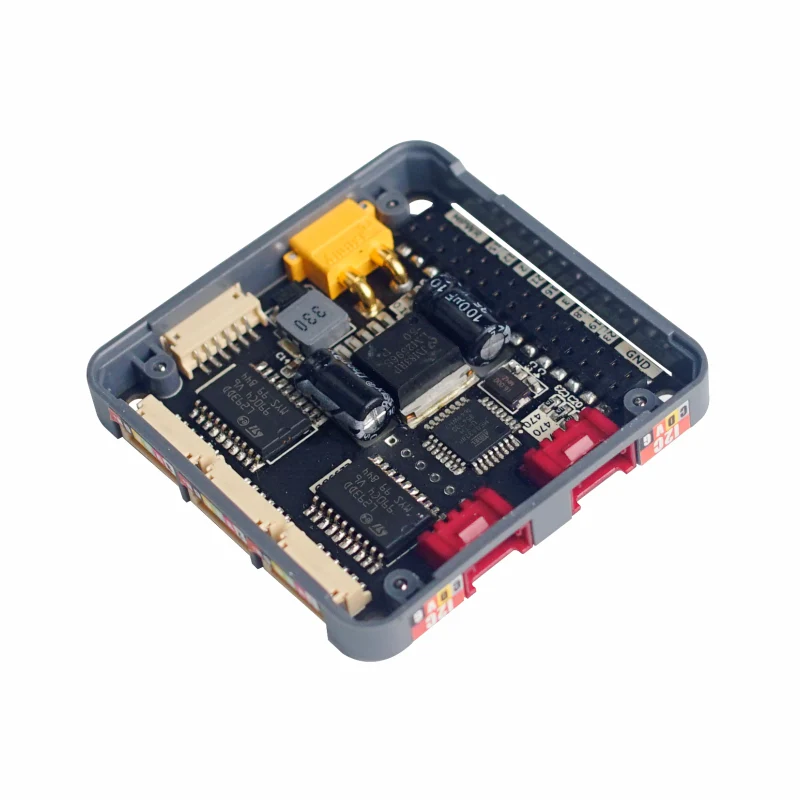

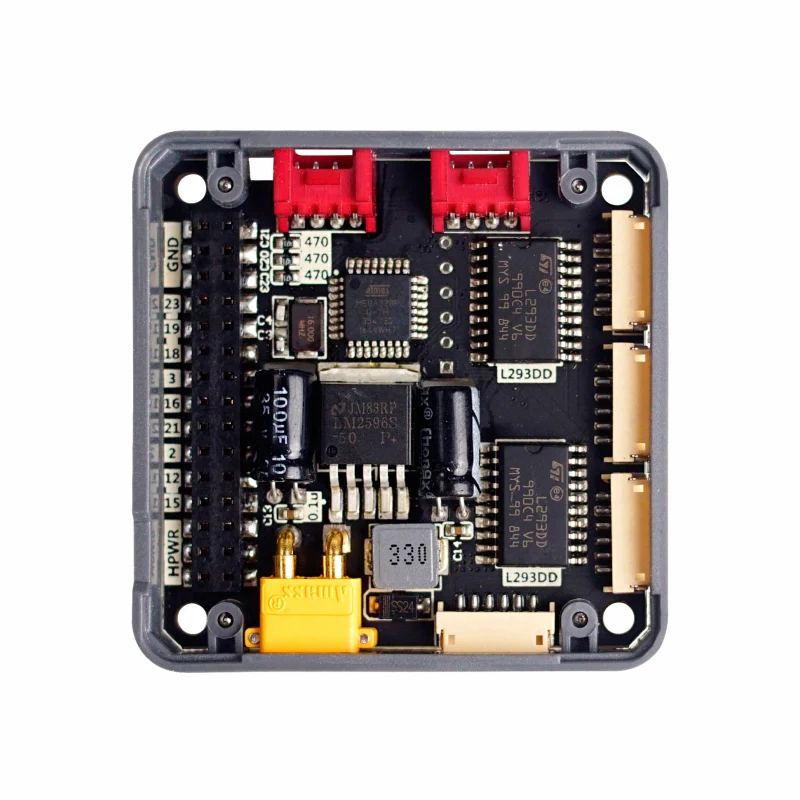

Module DCMotor is a DC motor driver module in the M5Stack stackable module series. It integrates the MEGA328 and L293DD chips, featuring 4 motor drive channels. It uses a DC power input design for power supply and automatically powers the M5Core on top via the M5-Bus. Using Module DCMotor, you can easily and quickly drive RJ12 interface encoder motors, such as LEGO EV3 motors (this product is not affiliated with or endorsed by LEGO, LEGO is a trademark of the LEGO Group).

Features

• Communication Protocol: I2C (Address: 0x56)
• DC Input: 6-12V
• DC Connector Type: XT30 (female)
• 4 x Motor Drive Channels (compatible with LEGO EV3-RJ12 interface encoder motors)
• 2 x I2C HY2.0-4P interfaces (extended from the A port of M5Core)

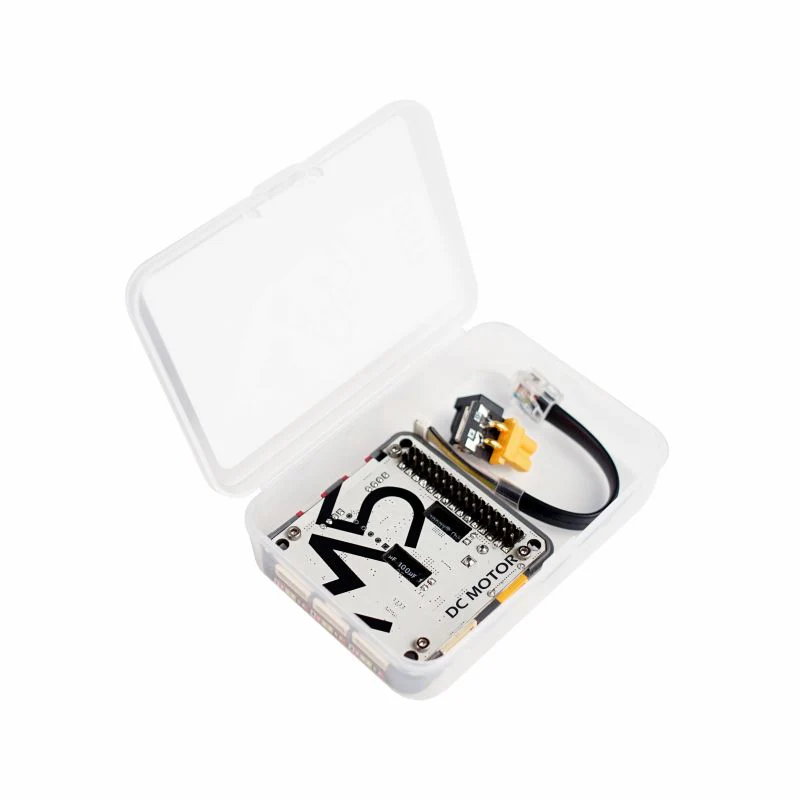

Includes

• 1 x Module DCMotor
• 1 x 10cm Motor Cable
• 1 x DC Power Connector
