[EOL] Mini Development Kit ESP32 1.3'OLED

This product is EOL.

Description

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.

Power on / off:

• Power on: Click the reset button

• Shutdown: Double the reset button

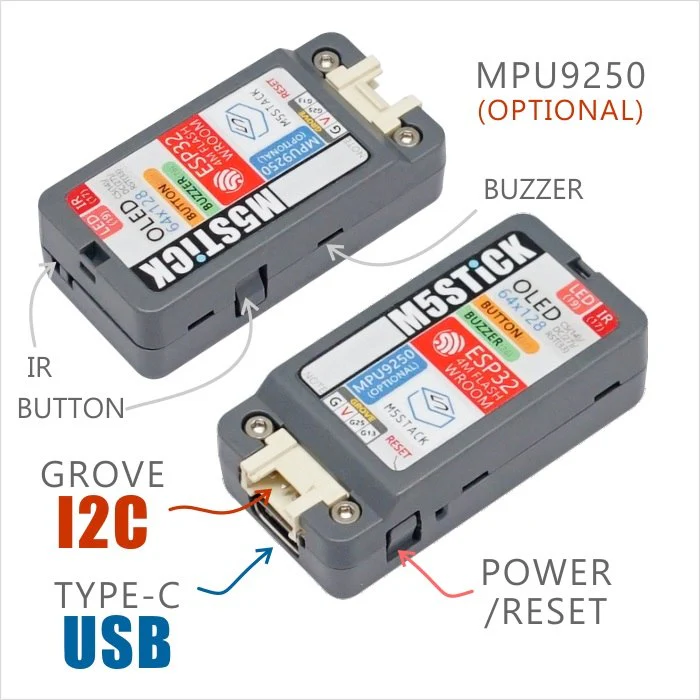

Product Features

• ESP32-based
• Bulit-in 9-Axis IMU
• Blue LED
• Buzzer
• IR transmitter
• Buttons, OLED(1.3 inch)
• Lipo Battery
• Extendable Socket
• Wearable & Wall mounted
• Development Platform Arduino

Include

• 1x M5Stick
• 1x USB Type-C(20cm)

Applications

• Wearable devices
• Internet of things terminal controller
• DIY creation

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
OLED Screen	1.3 inch, 64 x 128, SH1107
Button	Custom button x 1
LED	Blue LED x 1
Buzzer	Piezo buzzer
MEMS	MPU9250(Gray version)
IR	Infrared transmission
Battery	80 mAh @ 3.7V
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	48.2 x 25.5 x 13.7mm
Weight	14g
Case Material	Plastic ( PC )
