[EOL] SERVO Module Board 12 Channels

Description

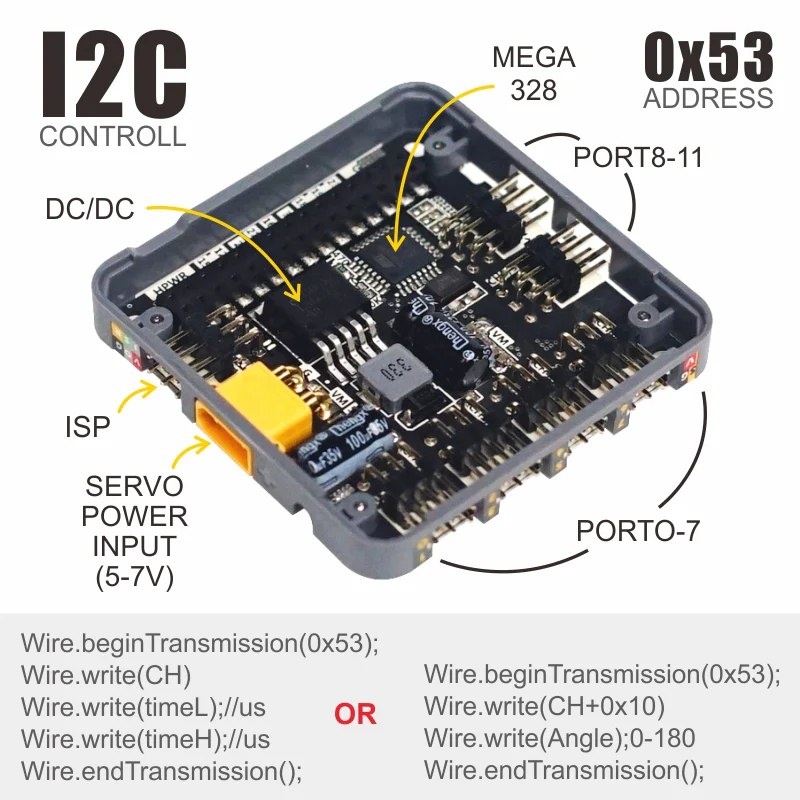

Module Servo is a servo driver module in the M5Stack stackable module series. It features 12 servo drive channels with a maximum power of 14 watts, capable of driving multiple Module Servo motors simultaneously. It uses a DC power input design for power supplementation and automatically powers the top M5Core through M5-Bus. Applying this simple and fast servo driving method to your projects will enhance your development efficiency. The Module Servo is based on the MEGA328 chip for I2C communication (0x53).

Features

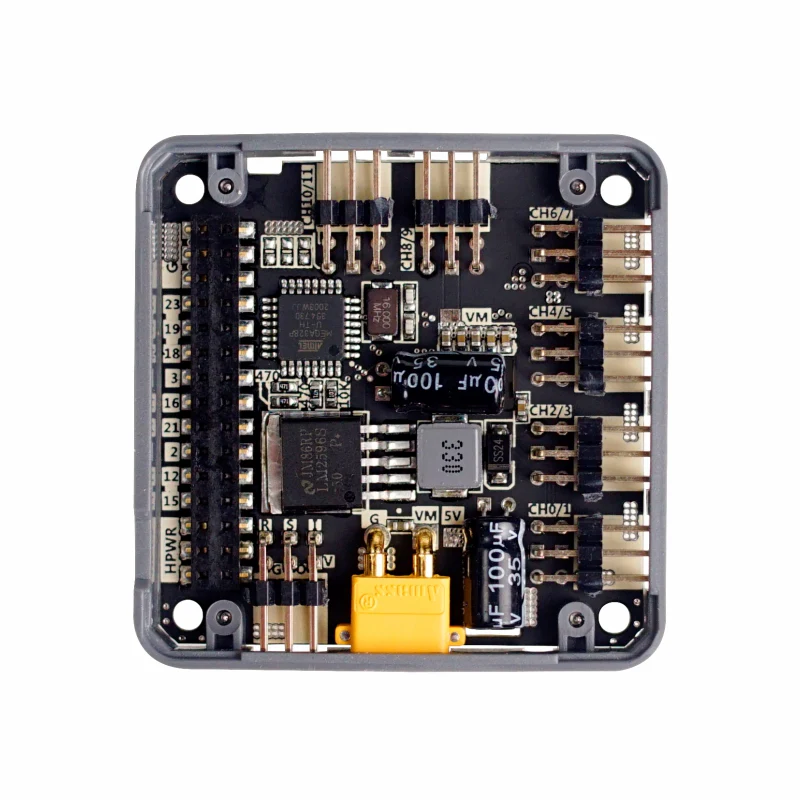

• 12 x Servo drive channels
• DC input: 5-7V
• DC connector type: XT30 (female)
• Power adapter interface: 5.5mm x 2.1mm

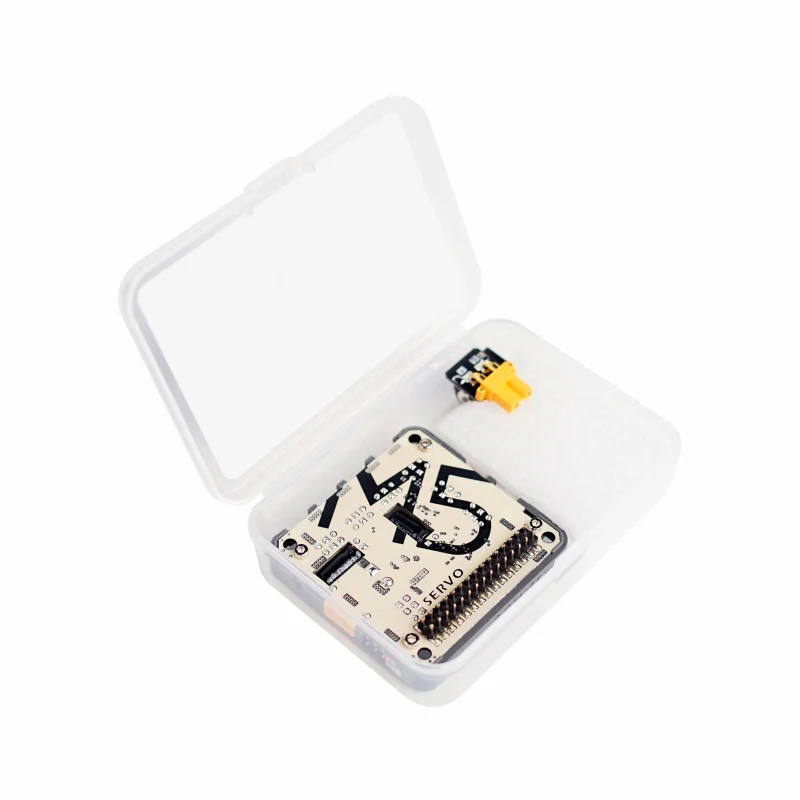

Includes

• 1 x Module Servo
• 1 x Standard male-to-male XT30 DC connector

Applications

• Humanoid robots
• Bionic multi-joint robots
• 3-axis servo gimbal

Specifications
