M5Stack 6060-PUSH Linear Motion Control
Description
6060-Push is a motion control module within the M5Stack structural system. It features a high-precision stepper motor, a Mega328 microprocessor, and a 1515 aluminum profile frame. By writing control programs, you can control the stepper motor. The module communicates via the RS485 serial bus, enabling high-precision displacement. It is suitable for various motion control scenarios, such as 3D printing and linear motion control.
Features
- Built-in Mega328: GRBL
- Customizable: Body length & effective stroke

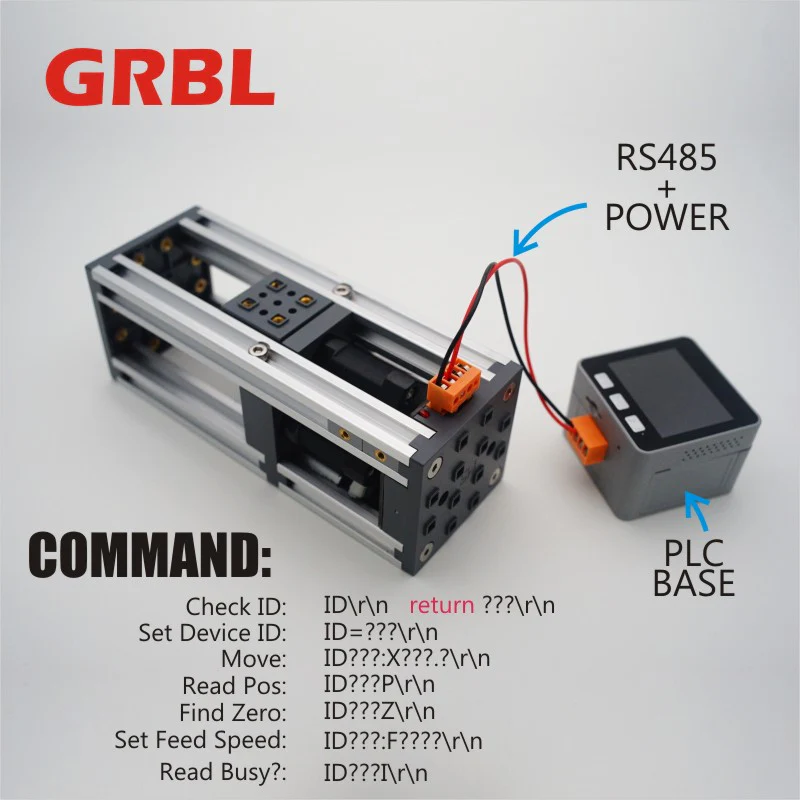

- RS485 communication
- 1515 aluminum profile frame
- 48 stepper motor: Two-phase, four-wire system
- Stroke: 57mm
- Input voltage: 12-24V
- Motor power: 10W
Includes
- 1x 6060-Push module
Applications
- 3D printing
- Linear motion control
Specifications
| Specification | Parameter |
|---|---|
| Product Size | 166.0 x 60.0 x 60.0mm |
| Product Weight | 556.8g |
| Package Size | 166.0 x 60.0 x 60.0mm |
| Gross Weight | 556.8g |
Learn and Documents
