RoverC Pro(W/O M5StickC)

Description

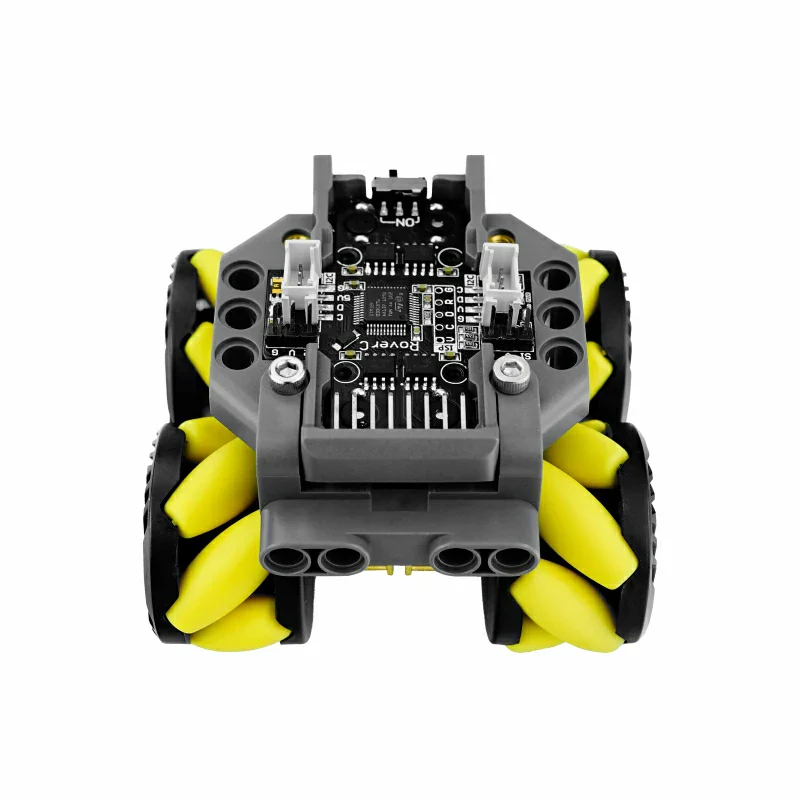

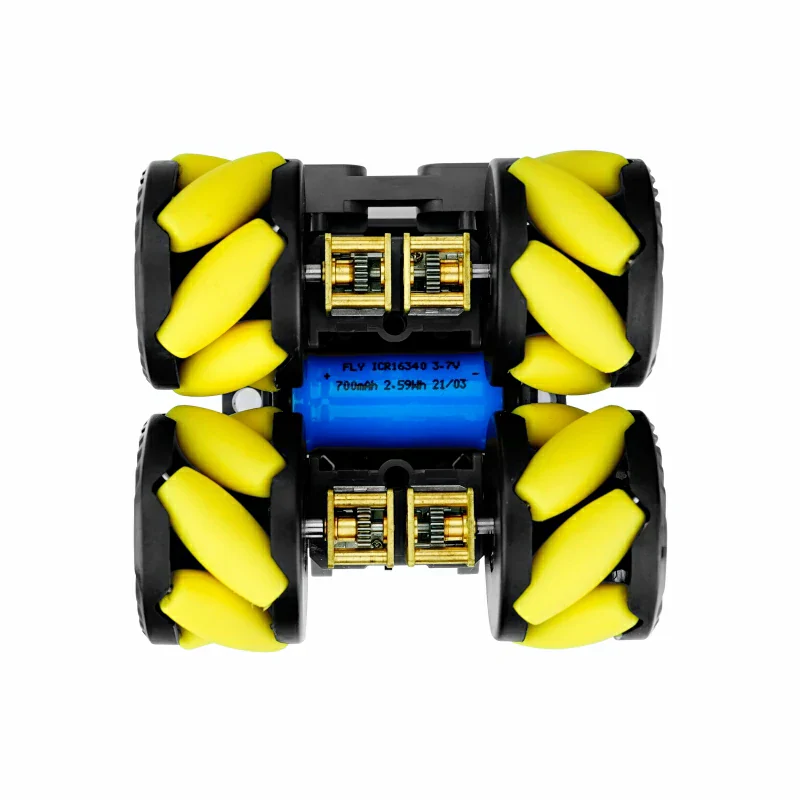

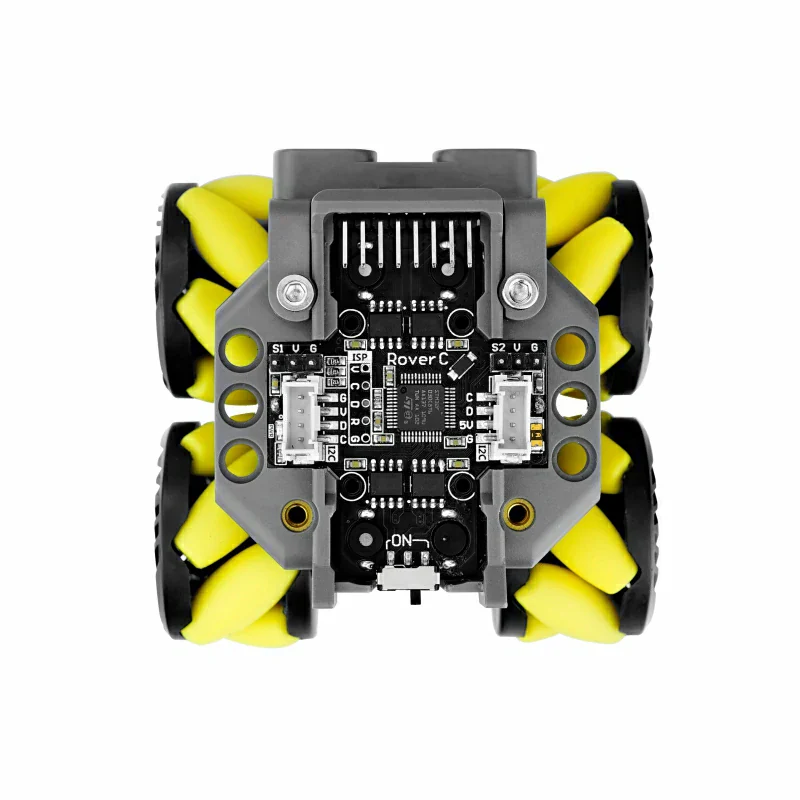

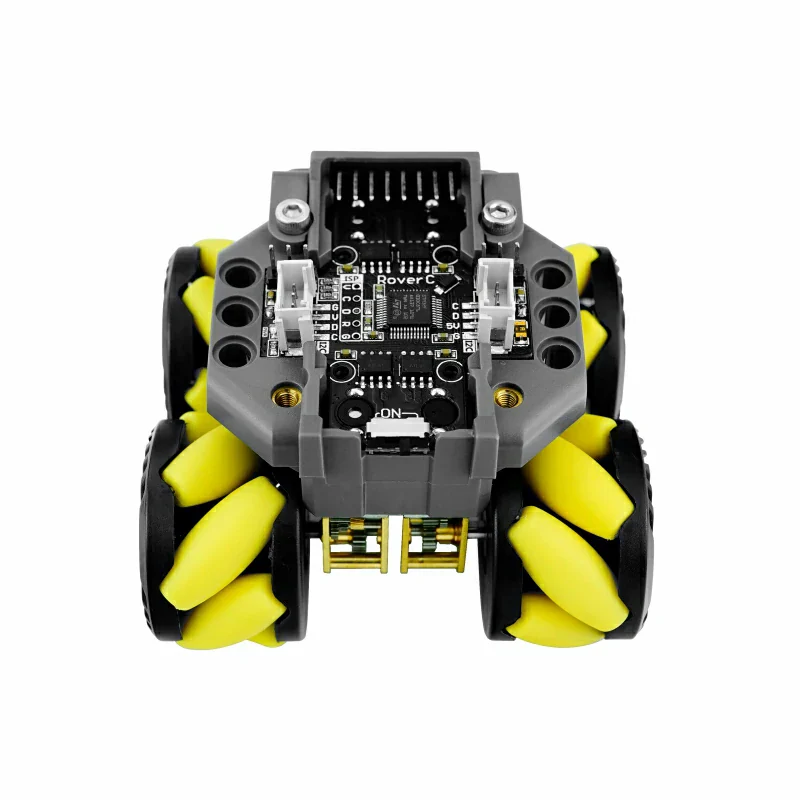

RoverC-Pro is a programmable Mecanum wheel omnidirectional mobile robot base. It is compatible with M5StickC/M5StickC PLUS and can be used by simply inserting the M5StickC/M5StickC PLUS. The main control chip is STM32F030C6T6, consisting of four N20 worm gear motors driven by the motor driver L9110S. The PRO version provides a gripping mechanism controlled by a servo for holding objects. The base offers two servo interfaces. Additionally, there are two Grove-compatible I2C interfaces for expanding other modules. The base is compatible with LEGO holes, allowing structural expansion. On the back, there is a replaceable rechargeable 16340 (700mAh) battery. The base battery can be charged via M5StickC/M5StickC Plus. There is a power switch and indicator light at the rear of the base.

Features

• I2C address 0x38
• Remote controllable
• Equipped with a gripping structure
• Programmable
• Omnidirectional flexible movement
• Four-channel motor driver
• LEGO compatible
• Additional Grove interface for expansion
• Equipped with 16340 (700mAh)

Includes

• 1 x RoverC-Pro

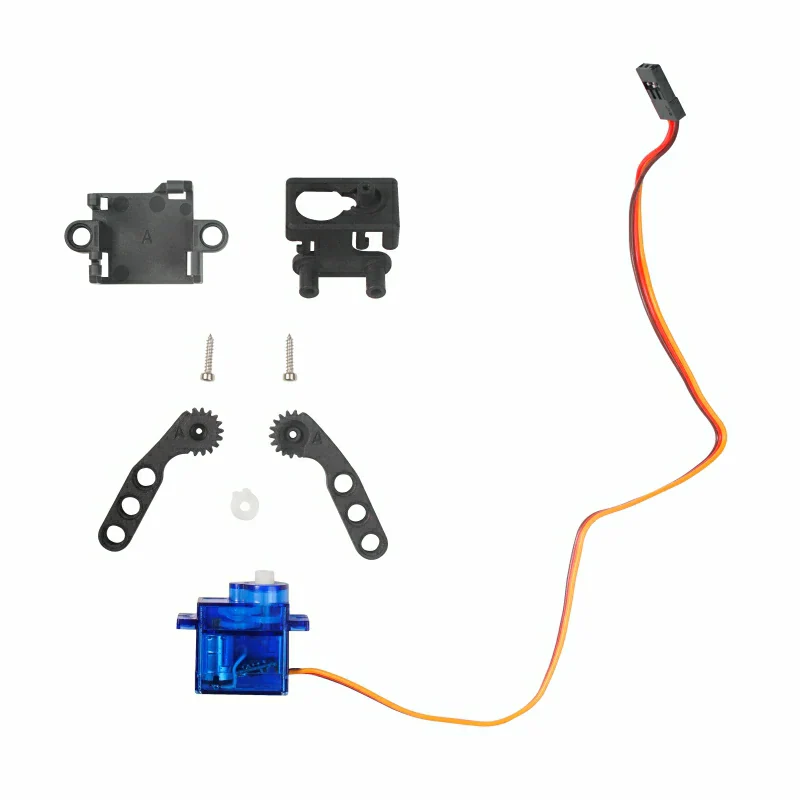

• 1 x Gripper Kit

Applications

• Mini reconnaissance vehicle
• Small mobile robot
• Smart toys

Specifications
