PM2.5 Air Quality Kit (PMSA003 + SHT30)
Description
The PM2.5 Air Quality Kit is an environmental temperature, humidity, and air quality detection product kit. This product is composed of the M5CORE host, SHT30 temperature and humidity sensor, and PMSA003 digital universal particulate matter concentration sensor. It can quickly detect the current environmental temperature and humidity data, and collect and calculate the number of suspended particles of different sizes in the air per unit volume. The simple and reliable design allows for quick deployment of nodes, and it can be used in various scenarios such as daily life or industrial environments for environmental data collection, or to provide real-time and accurate concentration data for instruments or environmental improvement equipment related to suspended particulate matter in the air.
Features
- DC 5V power supply
- Compatible with M5Stack expansion stacking system
- M5Core base (Pin out SPI/I2C/Power)
- Type-C USB
- 2.54mm universal board

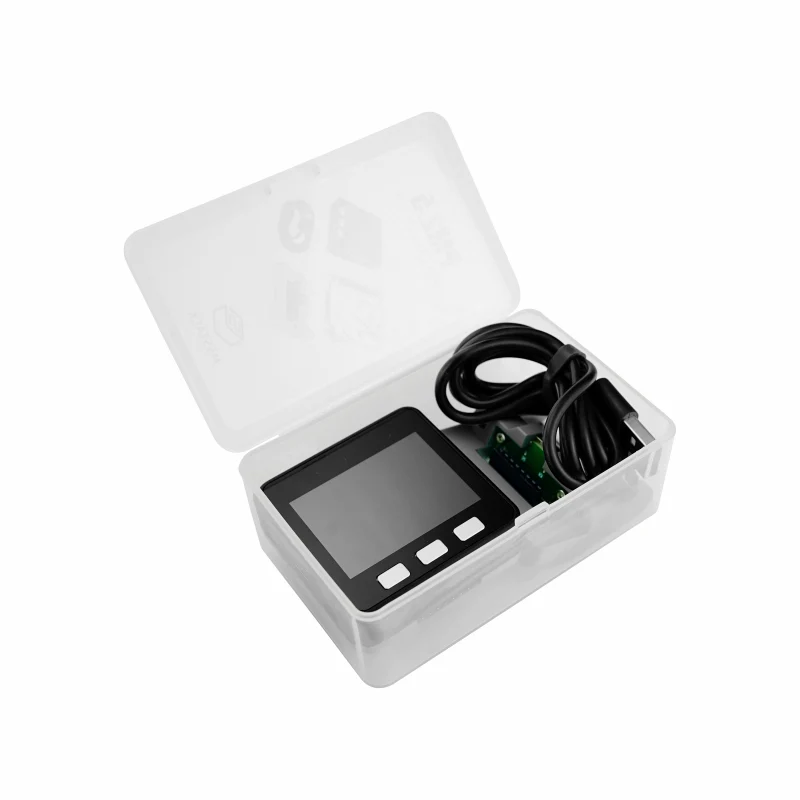

Includes

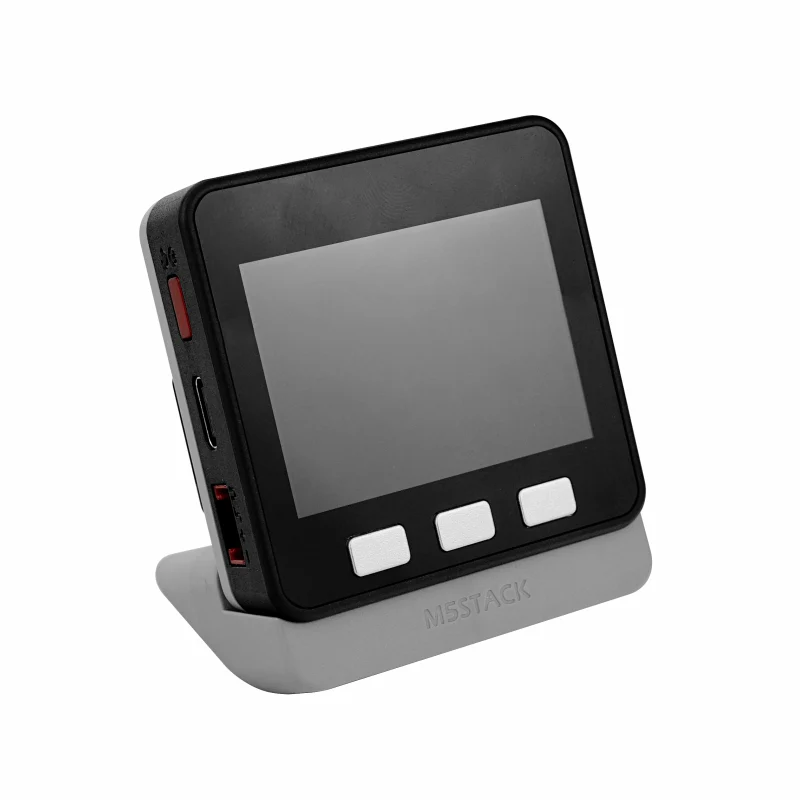

- 1 x M5Stack Basic

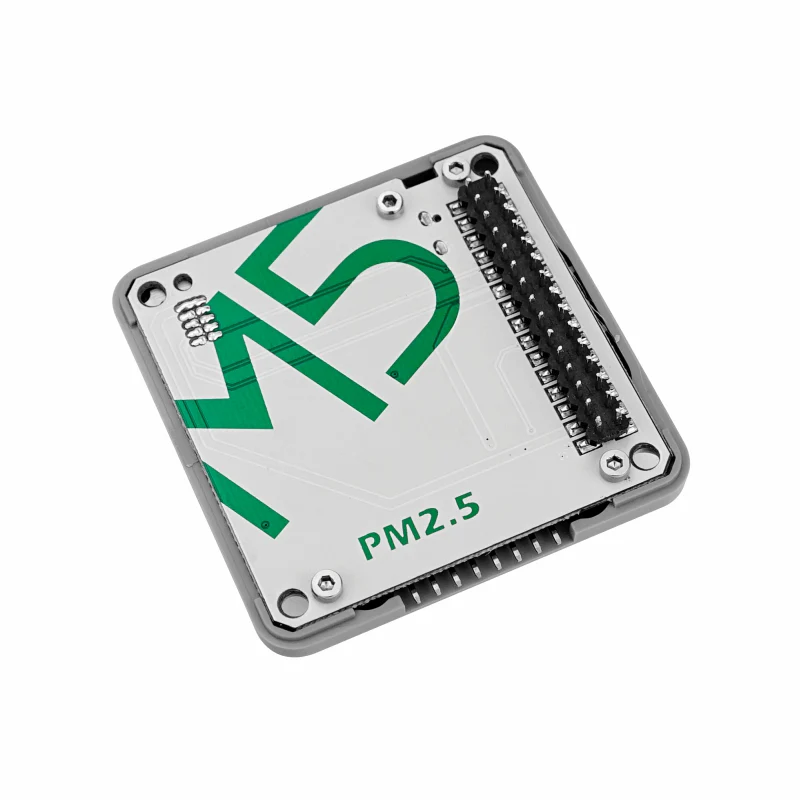

- 1 x PM2.5 base
- 1 x M5Core base
- 1 x SHT30 sensor
- 1 x Type-C USB
- 2 x M3x16 screws
Applications
- Environmental PM2.5 measurement
- Temperature and humidity measurement
Specifications
| Specification | Parameter |
|---|---|
| PM2.5 Sensor | PMSA003 |
| Temperature and Humidity Sensor | SHT30 |
| Minimum Resolution Particle Size | 0.3μm |
| Particulate Matter Mass Concentration Resolution | 1μg/m³ |
| Particulate Matter Measurement Range | 0.3-1.0, 1.0-2.5, 2.5-10 μm |
| Supply Voltage | 5V |
| Operating Temperature | -10℃ ~ +60℃ |
| Operating Humidity Range | 0 ~ 99% |
| Product Size | 54.0 x 54.0 x 25.0mm (excluding base) |
| Product Weight | 61.1g |
| Package Size | 125.0 x 67.0 x 23.0mm |
| Gross Weight | 136.6g |
Learn and Documents
